Resin CBN Surface Grinding Wheel for C75 Spring Steel | Anti-Burn Precision Grinding
Product Overview
Our Resin CBN Surface Grinding Wheel is a high-performance surface grinding tool specially designed for precision surface grinding of C75 spring steel (HRC 50-55). As a professional CBN surface grinding wheel, it effectively solves common problems in traditional surface grinding, including workpiece burning, poor chip removal, low efficiency and unstable precision.Featuring 12 fan-shaped abrasive layers, gap drainage holes and chip removal channels, this resin bonded surface grinding wheel provides excellent cooling performance and high grinding efficiency. Equipped with 230/270 mixed-grain CBN abrasive and high-strength resin bond, it supports paired use for double surface grinding with ultra-high parallelism and stability.
Widely used in automotive, precision machinery, aerospace and mass production lines, this resin CBN surface grinding wheel is the top choice for high-quality surface grinding of C75 spring steel and other hardened alloy steels.
Core Specifications
| Product Name | Resin CBN Surface Grinding Wheel |
|---|---|
| Model Number | D610*T30*H203*W203.5*X5 |
| Abrasive Material | Cubic Boron Nitride (CBN) |
| Abrasive Grit | 230/270 Mixed Grit |
| Application Material | C75 Spring Steel (HRC 50-55) |

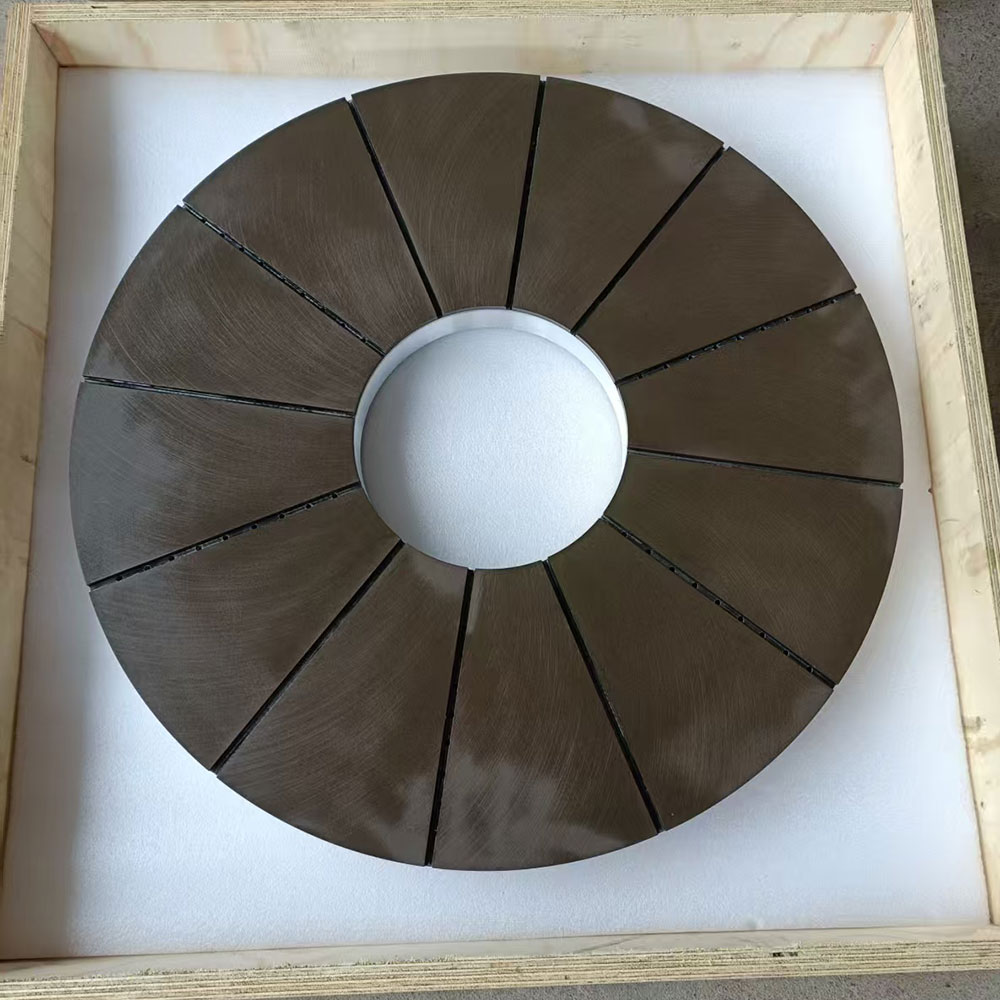

| Structure | 12 Fan-shaped Layers + Drainage & Chip Removal Holes |
| Bond Type | High-performance Resin Bond |
| Usage | Paired Use for Double Surface Grinding |
| Grinding Speed | 80~120m/s |
| Accuracy | Up to IT5 Grade |
Key Advantages of Our Surface Grinding Wheel
Anti-Burn Surface GrindingUnique cooling structure eliminates burning and cracks, ideal for high-hardness steel surface grinding.
High Hardness & Wear ResistancePremium CBN abrasive ensures 100x longer service life than conventional abrasives.
High Precision Surface FinishPaired design delivers excellent parallelism and consistency for mass production.
Strong Chip Removal AbilitySpecialized gaps and holes prevent clogging and maintain stable grinding performance.
Wide Machine CompatibilityUniversal design fits most surface grinding machines and double surface grinders.
Cost-Effective & Eco-FriendlyLow dressing frequency, low dust, long life, reduces overall processing cost.
Application Scenarios
- Automotive parts: Surface grinding of clutch plates, C75 spring steel gaskets
- Precision machinery: Surface grinding of high-hardness components and spring parts
- Aerospace: Surface grinding of high-stress quenched steel parts
- Mass production: Double surface grinding for high consistency and precision workpieces
Operation & Safety Notes
- Inspect the surface grinding wheel for cracks or damage before use.
- Do not exceed the rated working speed; test run for 1 minute before official grinding.
- Use oil-based coolant for CBN surface grinding wheels to ensure performance and lifespan.
- Operate with proper protection; avoid collision during surface grinding process.
Product Summary
This Resin CBN Surface Grinding Wheel is a professional-grade solution for precision surface grinding of C75 spring steel (HRC50-55). With anti-burn design, high wear resistance, excellent chip removal and ultra-high precision, it provides stable and reliable performance for industrial surface grinding applications.As a high-performance CBN surface grinding wheel, it greatly improves product quality, reduces production cost and enhances efficiency for manufacturers worldwide.
