A soft grinding wheel excels on hard materials because it creates a self-sharpening effect. During grinding, its bond releases dull abrasive grains, constantly exposing fresh, sharp edges. This process is vital for protecting the workpiece’s surface hardness. It prevents excess heat and rubbing damage. The principle ensures the wheel’s hardness is matched to the material’s hardness.
This technique is increasingly important, as the global superhard material market is projected to grow at a 6.1% CAGR through 2032, making the proper grinding of materials with high hardness essential for manufacturing.
Key Takeaways
- Soft grinding wheels work well on hard materials because they stay sharp. The wheel’s bond lets dull parts fall off, showing new, sharp parts to keep cutting.
- The ‘hardness’ of a grinding wheel means how strong its glue is, not how hard the cutting bits are. A soft wheel has weak glue, so it releases dull bits easily.
- Using a hard grinding wheel on hard materials causes problems. The wheel gets dull and rubs, creating too much heat. This can damage the material you are grinding.
- Choosing the right grinding wheel is important. Match the wheel’s ‘softness’ to the material’s hardness. This stops damage and makes the surface smooth.
- A soft wheel on hard material prevents the wheel from getting smooth and shiny. It also stops too much heat, which protects the material and makes the final surface look better.
The self-sharpening soft grinding wheel
The concept of a self-sharpening wheel is the foundation of modern grinding. This clever mechanism allows a soft grinding wheel to perform difficult tasks on very hard materials. It works by continuously renewing its cutting surface. This process prevents damage and ensures an efficient operation from start to finish.
How the self-sharpening mechanism works
The self-sharpening action is a cycle of wear and renewal. During grinding, the abrasive grains on the wheel’s surface cut into the workpiece. This action gradually dulls the sharp edges of each abrasive particle. On hard materials, the grinding forces are very high. These forces put stress on the bond holding the dull grains.
A soft bond is weak enough to break under this stress. It releases the dull abrasive grain, which falls away from the wheel. This action exposes a fresh, sharp grain located just beneath it. The new grain then takes over the cutting work. This cycle repeats constantly, ensuring the wheel is always cutting with sharp edges instead of rubbing with dull ones.
🔬 Scientific Insight
A recent study explored this effect with advanced diamond wheels on hard, brittle materials. Researchers found that the wheel’s abrasives developed tiny micro-fractures during grinding. These fractures allowed new, sharp micro-edges to replace the dulled ones. This continuous renewal led to a 10.2% decrease in surface roughness, proving the mechanism enhances both stability and surface quality.
Understanding grinding wheel hardness
Many people think grinding wheel hardness refers to the hardness of the abrasive grains, like diamond or silicon carbide. This is a common mistake. The actual abrasive material is always extremely hard. Grinding wheel hardness actually describes the strength of the bond that holds the abrasive grains together.
The industry uses a letter scale to define the grinding wheel hardness grade, typically from A (softest) to Z (hardest).
- Soft Grades (e.g., G, H, I): These wheels have a weaker bond. The bond releases abrasive grains easily under pressure.
- Hard Grades (e.g., P, Q, R): These wheels have a stronger bond. The bond holds onto abrasive grains much more tightly.
A softer hardness grade contains a lower percentage of bond material. This composition makes it easier for the bond posts to fracture. Therefore, the grinding wheel hardness grade directly controls how quickly the wheel “sharpens” itself. Choosing the correct hardness grade is critical. The goal is to match the grinding wheel hardness to the material’s own hardness to achieve the best results. The right hardness grade ensures optimal performance. A proper grinding wheel hardness grade is key for high-quality work. The grinding wheel hardness determines the wheel’s behavior.
Why a hard wheel fails on hard materials
Using a hard-grade wheel on high hardness materials leads to rapid failure and poor results. A hard bond is too strong. It will not release the abrasive grains even after they become dull from grinding the tough surface. Instead of cutting, the dull grains begin to rub against the workpiece.
This rubbing action generates extreme heat and friction. It also causes a condition called “glazing,” where the wheel’s surface becomes loaded with metal particles and smoothed over, losing all cutting ability. This failure creates several serious problems for the workpiece.
Using the wrong wheel, such as a hard wheel on a tough alloy, can cause significant damage. Documented examples show that this mismatch leads to:
- Surface Burn: The intense heat scorches and discolors the material’s surface.
- Tensile Residual Stresses: The heat creates internal stresses that can weaken the part and lead to cracks later.
- Metallurgical Damage: The high temperatures can alter the internal structure and hardness of the metal, ruining its engineered properties.
For instance, grinding Inconel 718 (a high-hardness superalloy) with the wrong wheel resulted in intense glazing and a visibly burnt surface. The wrong grinding wheel hardness choice can destroy valuable and sensitive components. The material’s hardness demands a wheel that can keep itself sharp.
The right application: Choosing your wheel
Understanding the self-sharpening principle is the first step. The next is choosing the correct wheel for your specific application. Selecting the right grinding wheel hardness ensures optimal performance and protects the workpiece. This choice depends on several factors, not just the material’s hardness.
Matching wheel grade to material
Matching the grinding wheel hardness grade to the material is critical for successful grinding. The material’s own hardness is the primary guide. For materials with high hardness, a soft grinding wheel allows for the necessary self-sharpening action. Other factors also influence the ideal grinding wheel hardness.
Key Selection Factors:
- Area of Contact: A larger contact area requires a softer hardness grade to reduce heat.
- Machine Horsepower: Machines with lower horsepower work better with a softer grinding wheel hardness grade.
- Material Properties: The material’s hardness and chemical makeup determine the best abrasive type and hardness grade.
Ultimately, the goal is to balance these elements to achieve the best performance. The correct grinding wheel hardness prevents wheel glazing and thermal damage, leading to superior results.
Aimgrind’s conventional bonded abrasives
Choosing the right wheel can be complex. This is where an expert partner like Aimgrind makes a difference. With nearly two decades of experience, Aimgrind provides customized grinding solutions. Their service helps customers diagnose grinding issues, such as chatter or feed lines, and select the perfect wheel. This ensures excellent grinding wheel performance for every application.

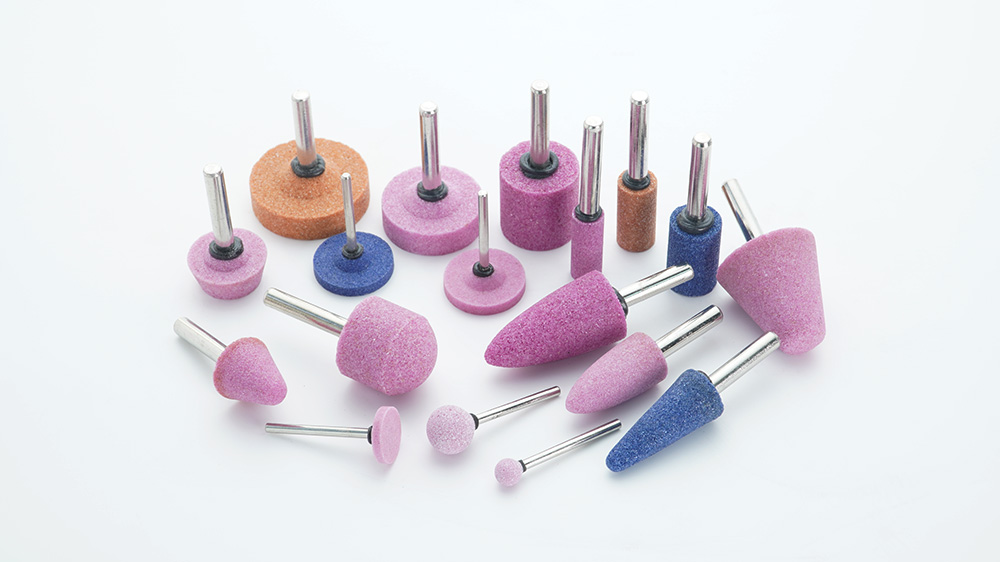

Aimgrind’s conventional bonded abrasives use materials like aluminum oxide and silicon carbide. These products are available in a full range of hardness grades. This variety allows for a perfect match to any material hardness, from soft alloys to hardened steels. This precise matching is key to achieving peak performance. The right grinding wheel hardness grade delivers consistent, high-quality performance.
The inverse rule for soft materials
The rule for grinding reverses for soft materials. Operators should use a hard hardness grade wheel on soft, ductile metals like aluminum or copper. The reason is simple. The abrasive grains on the wheel act like tiny cutting tools, tearing away metal chips. A strong bond, or a high grinding wheel hardness, is necessary to hold these grains firmly in place during this aggressive cutting action. A wheel with a weaker bond would wear down too quickly. This inverse logic highlights the importance of matching the grinding wheel hardness to the material’s unique properties for every grinding application to achieve the best performance.
Key benefits of the correct pairing
Pairing a soft wheel with a hard workpiece delivers significant advantages. This correct combination is not just a guideline; it is a strategy for achieving top-tier grinding performance. The benefits are measurable and directly impact the quality of the final part, ensuring efficiency and protecting valuable components. This approach optimizes the entire grinding operation.
Preventing wheel glazing
Wheel glazing occurs when the abrasive grains on a wheel lose their sharpness. The surface becomes smooth and shiny, much like sandpaper loaded with debris. This condition drastically reduces the wheel’s cutting performance. A soft bond directly prevents glazing. Its structure is designed to release dull grains under pressure, constantly exposing fresh, sharp edges. This self-sharpening action maintains the wheel’s cutting effectiveness.
A properly functioning wheel has open pores and sharp cutting edges. In contrast, a glazed wheel shows visible wear flats on the grits, indicating it can no longer cut effectively. This difference is key to high-quality grinding performance.
By preventing glazing, the wheel maintains a high material removal rate, which improves the overall performance of the grinding process. This ensures the wheel’s hardness is perfectly suited for the task.
Reducing heat and thermal damage
A glazed wheel does not cut; it rubs. This rubbing action generates intense heat, which can cause severe thermal damage to the workpiece. Excessive heat alters a material’s microstructure, which can soften the surface layer or create internal stresses. This damage can ruin the engineered properties of the metal, including its intended hardness and strength. The material’s surface hardness is compromised.
Using a soft wheel for grinding avoids this destructive heat buildup. The continuous self-sharpening action ensures the wheel is always cutting cleanly. This protects the material’s surface hardness and internal structure. The correct wheel hardness prevents metallurgical damage, preserving the integrity and performance of the component. The material’s inherent hardness remains unchanged.
Achieving a superior surface finish
A superior surface finish is a direct result of preventing glazing and reducing heat. A wheel that is too hard for the material will vibrate and generate excessive heat, degrading the surface roughness. The self-sharpening action of a soft wheel on hard materials is essential for achieving a smooth, accurate finish. This pairing delivers excellent results.
- It minimizes vibration for a smoother grinding action.
- It prevents surface burns that ruin the finish and part hardness.
- It helps achieve a fine surface roughness (Ra) between 0.4–1.6 µm.
This level of precision is critical for components like bearings and sliding parts, where a flawless surface is necessary for optimal performance. The correct wheel hardness ensures the final product meets strict industry standards, proving the importance of matching wheel hardness to material hardness.
The self-sharpening action of a soft grinding wheel is the key to effective grinding on materials with high hardness. This process prevents wheel glazing, minimizes heat, and produces a high-quality finish. Choosing the correct wheel involves many factors. Partnering with an expert like Aimgrind ensures the perfect match for any grinding application. Their expertise helps you select the right wheel for your specific application, turning challenges into successes.
Grind with Passion, Achieve with Aim.
FAQ
What is grinding wheel hardness?
Grinding wheel hardness does not refer to the abrasive grain’s hardness. It describes the bond’s strength. A soft hardness grade releases grains easily. A hard hardness grade holds them tightly. The wheel’s hardness grade is crucial. The material’s hardness dictates the needed wheel hardness.
Why does a soft wheel work on a material with high hardness?
A soft wheel on a material with high hardness creates a self-sharpening effect. The bond’s soft hardness allows dull grains to break away. This action exposes new, sharp grains. This process maintains cutting efficiency and protects the material’s surface hardness. The wheel’s hardness is key.
What happens if the wheel hardness is wrong for the material hardness?
A mismatch between wheel hardness and material hardness causes problems. A hard wheel on a material with high hardness leads to glazing and heat. This can ruin the part’s surface hardness. A soft wheel on a material with low hardness wears too fast. The correct hardness is vital.
How does contact area affect the choice of wheel hardness?
A larger contact area needs a softer wheel hardness. This choice reduces heat buildup during grinding. The material’s hardness is still the main factor. The wheel’s hardness must balance the contact area and the material’s own hardness. This ensures the correct grinding hardness.
Does machine power influence the required wheel hardness?
Yes, machine power affects the choice of wheel hardness. Lower horsepower machines work better with a softer wheel hardness. This is because the machine has less power to fracture the bond. The material’s hardness remains a critical factor in selecting the wheel’s hardness.
