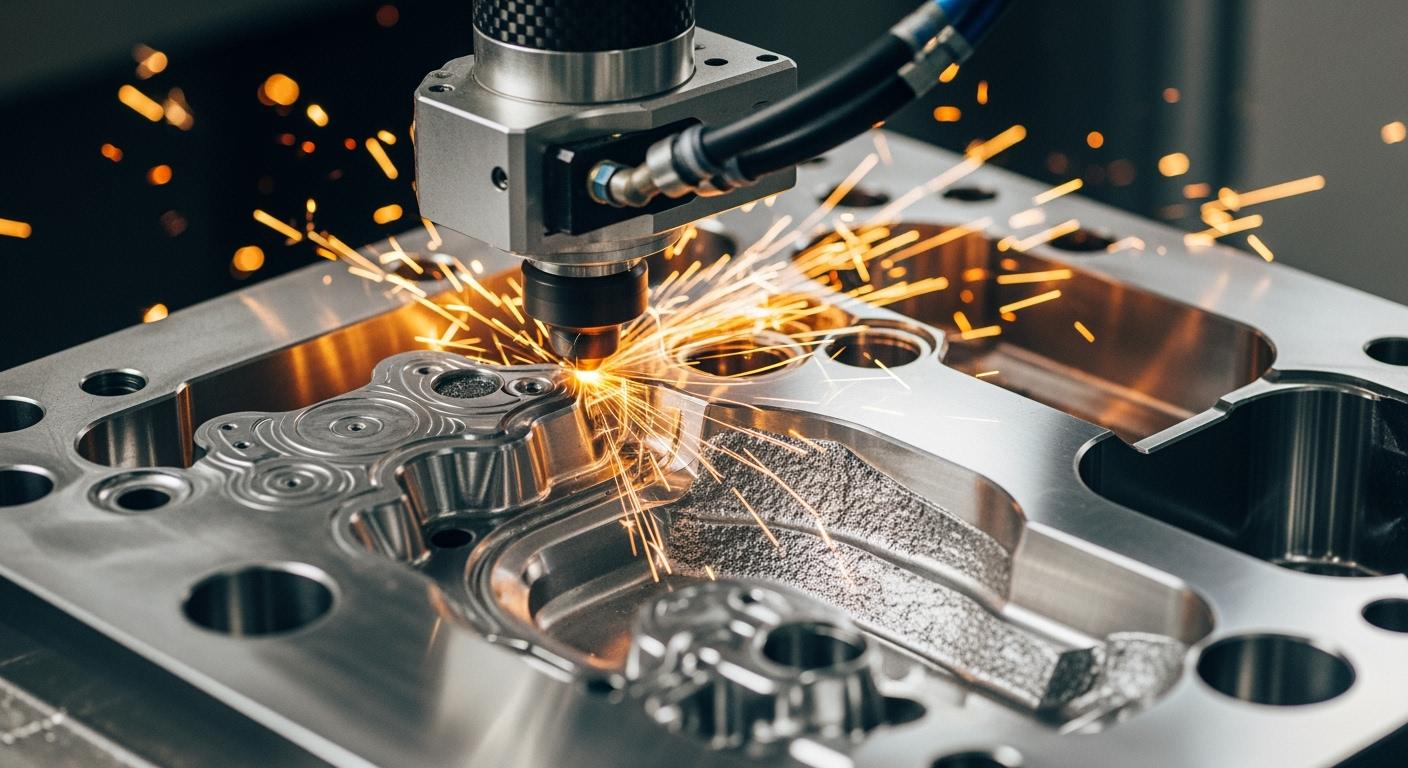

Achieving a flawless surface finish on dies with complex geometries is a major challenge. Effective grinding and polishing strategies provide a clear solution. The process combines precision grinding for shaping with systematic polishing for the final finishing. Successful surface finishing depends on this method. The finishing process requires matching tools to features like sharp corners. This careful grinding and polishing is vital for the final finishing, demanding precise polishing techniques.
Key Takeaways
- Use the right grinding tools for each die material. For example, CBN wheels work well for steel, and diamond wheels are best for carbide.
- Control grinding speed, feed, and pressure carefully. This prevents damage and creates a smooth surface for polishing.
- Polish in many steps, starting with rough abrasives and moving to very fine ones. Clean the die well between each step.
- Use special tools like ultrasonic polishers and reciprocating profilers for small details and sharp corners. This helps keep the die’s exact shape.
- Check the surface quality often with tools like profilometers. This makes sure the die meets all the needed standards.

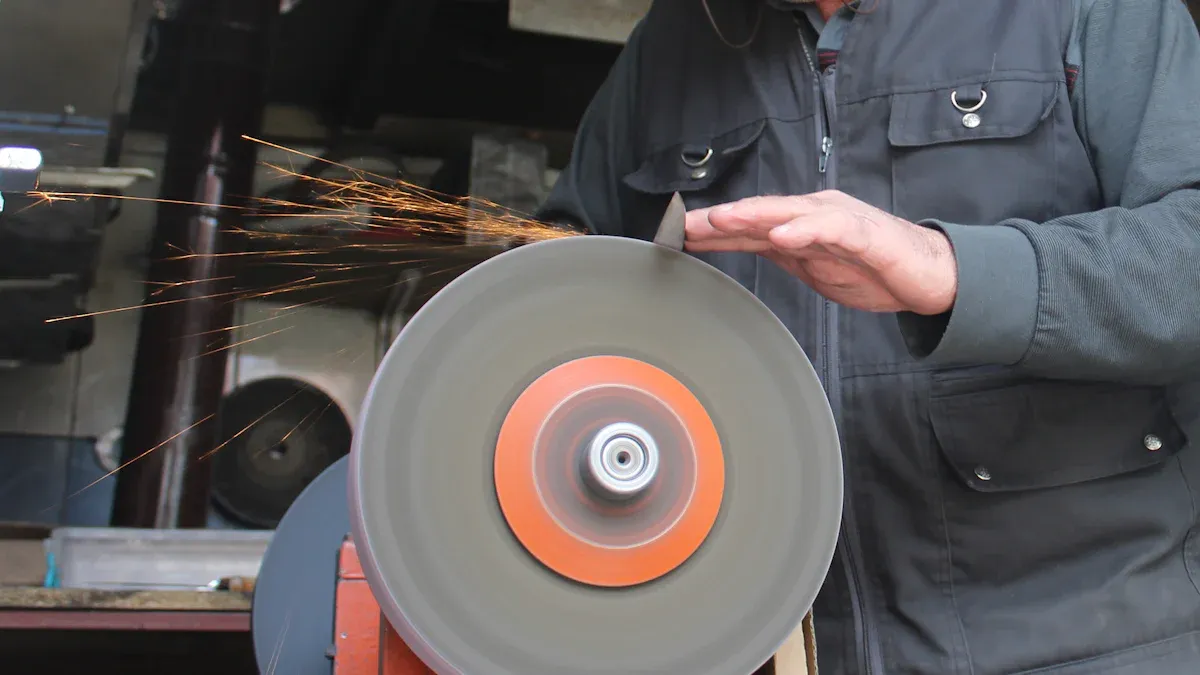

Core Grinding and Polishing Strategies
Effective grinding and polishing strategies form the foundation of a high-quality die finish. This process is not a single action but a series of deliberate steps. Each step builds upon the last, moving from coarse shaping to fine finishing. Success requires a deep understanding of tools, parameters, and techniques.
Choosing the Right Grinding Tools
Selecting the correct grinding tool is the first critical decision. The tool’s abrasive material must match the die’s steel composition. Different tool steels demand different abrasives for optimal performance.
- For D2 Tool Steel: Cubic Boron Nitride (CBN) offers high productivity for moderate tolerance grinding. Silicon Carbide is a strong alternative when tighter tolerances are needed.
- For H13 Tool Steel: A specialized wheel like a 39CA500 grit wheel works well for grinding thread forms, though it requires frequent redressing.
While CBN is often preferred for grinding ferrous metals due to its thermal stability, diamond wheels hold a crucial place. For dies containing tungsten carbide components or for achieving ultra-fine finishing on non-ferrous materials, diamond is unmatched.
| Feature | Diamond Grinding Wheels | CBN Grinding Wheels |
|---|---|---|
| Best For | Tungsten carbide, ceramics, non-ferrous metals | Hardened tool steels, ferrous alloys |
| Reaction with Steel | Reacts at high temperatures, causing wear | Chemically stable, does not react with iron |
| Hardness | The hardest known material | Second hardest material, ideal for steel |
Note: A two-stage grinding process yields the best results. Rough grinding corrects major surface flaws from initial machining. Fine grinding then refines the surface, creating a uniform base for the final polishing stages.
For customized solutions, operators often turn to specialized providers like Aimgrind. The brand offers personalized tool selection to match specific die materials and equipment. Aimgrind’s diamond grinding wheels deliver exceptional precision and durability, making them an excellent choice for the hard alloys and composite materials found in modern dies. This ensures a superior foundation for subsequent finishing.
Maintaining Sharp Edges with Profile Grinding
Complex dies feature sharp internal corners, ribs, and small radii. Standard grinding wheels cannot access these areas without compromising the geometry. Profile grinding uses specialized tools to maintain these critical features.
- Electroplated Pins/Mounted Points: These small, rigid grinding tools can access tight spaces. They are perfect for finishing the internal bore of a gear or small holes in a die block.
- Profile Grinding Wheels: These wheels hold their shape exceptionally well. This makes them ideal for producing consistent, complex shapes and maintaining sharp internal corners during the finishing process.
- Grinding Pins: Available in various shapes (cone, ball, cylinder), these tools are essential for contouring, deburring, and detailed finishing work inside a mold.
Using these tools ensures that every detail of the die’s complex geometries is accurately shaped, paving the way for a perfect polishing outcome.
Controlling Speed, Feed, and Pressure
Proper machine parameters are just as important as tool selection. The operator must carefully control grinding speed, feed rate, and pressure. Incorrect settings can introduce new defects, such as burn marks, chatter, or surface waviness. A key technique involves the direction of grinding strokes. Operators should direct grinding strokes at a 45- to 90-degree angle relative to the original machining marks. This cross-hatching method effectively removes previous lines instead of just deepening them, which is crucial for a uniform surface ready for polishing. This controlled approach to grinding ensures a smooth transition to the polishing phase.
Using Coolants to Prevent Thermal Damage
Grinding generates intense heat. Without proper cooling, this heat can cause thermal damage, soften the die surface, and reduce tool life. Coolants are essential for managing temperature during the grinding and finishing process.
The type of coolant matters. Both synthetic and semi-synthetic coolants offer distinct benefits for grinding operations.
| Coolant Type | Key Properties for Grinding |
|---|---|
| Synthetic | Excellent lubricity and cooling for fine finishing. |
| Semi-synthetic | Good balance of cooling and lubrication for general grinding. |
Applying the coolant effectively is also critical, especially in deep ribs and cavities. Research shows that simply increasing coolant flow has diminishing returns. Instead, the application method makes a bigger impact. Designing coolant channels with features like trapezoidal ribs can significantly improve heat transfer. These ribs disrupt the flow boundary layer and create turbulence, pulling heat away from the die surface more efficiently. This advanced cooling strategy protects the die’s integrity during aggressive grinding and is a vital part of modern grinding and polishing strategies. It ensures a high-quality surface ready for the final polishing steps.
Systematic Polishing Techniques for a Flawless Finish
After grinding establishes the die’s fundamental shape, a systematic approach to polishing is necessary to achieve a mirror-like, dimensionally perfect surface. This phase transforms a well-shaped die into a high-performance tool. Effective polishing techniques remove the fine scratches left by grinding, creating a flawless surface finish that reduces friction and improves part release. The polishing process is a meticulous craft, demanding patience and precision.
The Multi-Stage Polishing Process
Achieving an optimal polishing finish is not a single step. It is a multi-stage polishing process that progressively refines the die surface. Operators start with coarser abrasives and move to finer ones. Each stage removes the scratches from the previous one until the desired surface finish is reached.
- Rough Polishing: This initial finishing stage uses coarse-grit stones or diamond compounds (e.g., 400-600 grit) to remove the marks left from fine grinding.
- Semi-Fine Polishing: The operator then moves to medium-grit abrasives (e.g., 800-1200 grit). This step further refines the polished surface and prepares it for the final finishing.
- Fine Polishing: The final finishing stage uses very fine diamond pastes (e.g., 3-6 micron) and soft lapping tools. This creates a smooth, reflective surface.
- Mirror Finishing: For optical-grade or high-wear applications, a final polishing with a 0-2 micron diamond compound produces a true mirror finish.
Pro Tip: Clean the die surface thoroughly between each polishing stage. Any leftover abrasive particles from a coarser stage can create deep scratches, forcing the operator to start the polishing process over.
Using Cross-Hatching for Uniform Removal
A key technique for effective material removal during polishing is cross-hatching. This method involves alternating the polishing direction, typically at a 45- to 90-degree angle, with each change in abrasive grit. This pattern ensures that the scratches from the previous step are completely removed, not just smoothed over. It creates a uniform surface and prevents uneven material removal.
The angle of the cross-hatch pattern directly impacts the efficiency of the polishing. Research shows that the material removal rate changes with the angle. The rate increases as the angle moves from 16 to 32 degrees. However, beyond 32 degrees, the rate begins to decrease. An angle of approximately 32 degrees provides the best balance, maximizing material removal speed. This makes the finishing work more efficient.
Leveraging Ultrasonic Polishers for Details
Complex dies often contain tiny ribs, sharp corners, and intricate details that are impossible to reach with standard polishing methods. For these areas, ultrasonic polishers are an invaluable tool. These devices use high-frequency vibrations to power a small ceramic or metallic tool tip.
Ultrasonic polishing offers significant advantages over traditional mechanical polishing for detailed finishing:
- Unmatched Precision: It provides precise control with a stroke length as small as 4 microns and a reciprocation rate of 25,000 strokes per second. This allows for detailed finishing on close-tolerance jobs.
- No Surface Damage: The high-frequency, low-pressure action works on hard and brittle materials without causing deformation or burn marks, common risks with manual polishing.
- Superior Surface Finish: This technology can achieve a high-quality surface finish with roughness values as low as 0.08 micrometers, creating exceptionally smooth polished metal surfaces.
These polishers eliminate the guesswork associated with manual finishing, ensuring every detail is perfectly polished.
Using Reciprocating Profilers for Corners
Maintaining sharp internal corners and flat surfaces is a major challenge in die finishing. Reciprocating profilers, also known as filing machines, are designed for this task. These tools provide a short, linear stroke that is ideal for working in tight slots and corners without rounding the edges. The effectiveness of these tools depends heavily on the abrasive stones used.
Different stones offer unique properties for specific finishing tasks.
| Polishing Stone | Best Use with Reciprocating Profilers |
|---|---|
| TH Polishing Stone | Holds its shape well, making it ideal for polishing sharp corners. |
| Orange EDM Stone | Excellent for fast removal of the hard scale left by Electrical Discharge Machining (EDM). |
| AO Polishing Stone | Retains its shape for precise polishing of fine mold cavity details. |
| Golden Star Stone | Contours quickly to shapes while offering superior breakdown characteristics for smooth finishing. |
Choosing the right stone for the profiler is critical for efficient and accurate mechanical polishing of die features. This targeted approach to polishing ensures geometric integrity.
Finishing Contours with Flexible Shafts
Dies often feature complex curves, contours, and rounded surfaces. A flexible shaft tool, which connects a rotary handpiece to a motor via a flexible cable, provides the dexterity needed for this type of surface finishing. These tools allow operators to use a wide variety of abrasive attachments for sanding, grinding, and polishing in hard-to-reach areas.
Effective attachments for flexible shaft tools include:
- 3M Radial Bristle Disks: These are highly effective for cleaning up scratches on curved or uneven surfaces.
- Felt Bobs with Diamond Compound: Used for the final polishing stages, these bobs conform to contours to create a high-gloss polished surface.
- Custom Sandpaper Tools: Operators can create custom tools by attaching emery paper to mandrels or cores. This allows for limitless variations to perfectly match convex or concave profiles.
While powerful, these tools are best reserved for very small areas, like the inside of rings or between bezels, where other tools cannot fit. This final finishing step ensures that every part of the die, no matter how complex, receives a perfect polish.
Advanced Methods and Quality Control
Modern die manufacturing integrates advanced technology with strict quality control. These methods ensure that every complex die meets exact specifications for performance and longevity. This combination of automation and verification is essential for superior surface finishing.
Integrating CNC for Repeatable Accuracy
Computer Numerical Control (CNC) grinding delivers exceptional accuracy. CAM software uses AI-driven algorithms to generate error-free toolpaths. This automation ensures the toolpaths achieve production goals and maintain tight tolerances. Advanced software modulates feed rates, which creates a better surface finish. This process is a cornerstone of modern finishing.
Implementing Robotic Polishing for Consistency
Robotic systems bring unmatched consistency to the polishing process. Key technologies make this automation effective.
- Offline Programming: Reduces robot path programming time significantly.
- Compliance Force Control: Ensures consistent finishing pressure across complex shapes.
- High-Precision Calibration: Guarantees accurate tool movement for reliable results.
This automated finishing delivers a uniform polished surface on every part.
Using EDM as a Pre-Polishing Step
Electrical Discharge Machining (EDM) is excellent for shaping hard metals. However, it leaves a hard, brittle “white layer.” This layer can cause cracks during polishing. Operators must remove it first. Methods like electropolishing or grit blasting effectively strip this layer, preparing the die for a flawless polishing and finishing process.
Quantifying Finish with Surface Profilometers
Operators must verify the quality of the surface finish. Surface profilometers provide precise, quantitative data on roughness (Ra). Different applications require different levels of finishing.
| Surface Description | Required Ra (µm) |
|---|---|
| Optical Lenses | 0.025 |
| Polished Dies | 0.2 |
These measurements confirm that the finishing process meets the required engineering standards.
The Importance of In-Process Inspection
Inspection during the finishing process prevents wasted effort. Digital microscopes allow operators to find tiny defects like scratches or bubbles early. They can zoom from a wide overview to a detailed view to inspect the surface. This early detection is crucial for achieving a perfect polished surface and a successful surface finishing outcome. This final inspection completes the polishing workflow.
Effective grinding and polishing strategies combine a multi-stage polishing process with precise grinding. Operators must match tools like Aimgrind’s specialized wheels to complex geometries and implement strict quality verification.
A high-quality surface finish results from successfully integrating these complementary grinding and polishing strategies.
Mastering this polishing process and the art of polishing leads to improved die performance and longer tool life. Grind with Passion, Achieve with Aim.
FAQ
Why is a multi-stage polishing process necessary?
A multi-stage process systematically refines the die surface. Each step uses a finer abrasive to remove the scratches from the previous stage. This gradual approach is the only way to achieve a flawless, mirror-like finish without introducing new defects.
What is the main difference between diamond and CBN wheels?
Tool selection depends on the die material. Diamond grinding wheels, like those from Aimgrind, are ideal for tungsten carbide and non-ferrous materials. CBN wheels perform best on hardened tool steels because they are chemically stable and do not react with iron at high temperatures.
How do operators prevent rounding sharp corners?
Operators use specialized tools to maintain sharp geometry. Reciprocating profilers with firm polishing stones, such as TH or AO stones, provide precise control. These tools allow for effective polishing in tight corners without compromising the die’s critical edges.
Why is cleaning between polishing stages so important?
Thorough cleaning is essential for a perfect finish. Leftover abrasive particles from a coarser stage will create deep scratches on the newly polished surface. This contamination forces the operator to go back and repeat previous steps, wasting valuable time and effort.
