For tasks demanding the highest precision, an electroplated grinding wheel is the definitive choice. The global precision grinding market is growing, with projections showing a 6.2% CAGR. This expansion underscores the need for superior tools. An electroplated wheel offers a key advantage for achieving top-tier results.
The unique electroplated bond exposes a single layer of superabrasive grains. This electroplated design delivers unmatched cutting action, ensuring ultimate precision and superior finishes on every part.
Engineers and machinists use these wheels to enhance part quality, reduce cycle times, and improve cost-effectiveness.
Key Takeaways
- Electroplated grinding wheels offer great precision. They have a single layer of abrasive grains. This design helps them cut very well.
- These wheels save time and money. They do not need frequent reshaping. This means less downtime and faster work.
- Electroplated wheels work well with hard materials. They are good for ceramics, glass, and composites. They make clean cuts on these tough items.
- These wheels keep parts cool. Their open design lets coolant flow easily. This stops heat damage to sensitive parts.
- You can reuse the core of these wheels. This saves money. It is cheaper to replate a worn wheel than to buy a new one.
Achieving Ultimate Precision and Superior Finishes
An electroplated grinding wheel achieves exceptional precision through its unique design. The manufacturing process creates a tool perfectly suited for demanding applications where accuracy is non-negotiable.
The Single-Layer Abrasive Advantage
The core of an electroplated wheel’s performance lies in its single, exposed layer of superabrasive grains, like diamond. This structure provides a distinct advantage over bonded wheels. The electroplated bond securely holds each diamond particle, leaving a significant portion exposed for direct contact with the workpiece. This results in clean cuts and a superior surface finish. The open structure offers two key benefits:
- Aggressive Cutting: The protruding diamond grains allow for aggressive cutting, improving material removal rates.
- Cooler Operation: The open design facilitates better coolant flow. This reduces the risk of thermal damage to sensitive components.
Maintaining Form Without In-Process Dressing
Conventional grinding wheels require frequent dressing to maintain their shape and cutting ability. This non-grinding time can account for 50% or more of a total production cycle. An electroplated wheel holds its profile for its entire lifespan. This eliminates the need for in-process dressing, which can take several minutes per cycle. By removing this “dead time,” machinists significantly shorten cycle times and boost output. The wheel’s consistent form ensures reliable precision from the first part to the last.
Creating Complex Profiles with High Accuracy
The ability to maintain a perfect form makes electroplated wheels ideal for high precision machining. They excel at creating intricate shapes and complex geometries for high precision parts. For example, the aerospace industry uses electroplated CBN wheels for the precision grinding of double helical gears used in helicopter gearboxes. The single layer of diamond is firmly embedded in a nickel matrix. This construction guarantees that the wheel maintains its profile with extreme precision, making it the perfect tool for tasks where small details make a big difference.
The Competitive Edge of Electroplated Grinding Technology
The competitive edge of electroplated grinding technology stems from its unique manufacturing process. The electroplating process creates a free-cutting wheel with a single, highly concentrated layer of abrasive. This design directly boosts productivity in modern manufacturing environments.
Faster Material Removal and Reduced Cycle Times
An electroplated wheel excels in high-speed machining. Its aggressive, free-cutting nature allows for rapid material removal without losing efficiency, making it perfect for high-speed CNC machining. This capability leads to significantly shorter cycle times. The durability of the electroplated bond also means fewer wheel changes and less downtime. These factors combine to enhance overall productivity in demanding applications like aerospace and industrial parts manufacturing.
Excellent Heat Dissipation for Sensitive Parts
Lower grinding temperatures are crucial when working with delicate components. The open structure of an electroplated wheel provides excellent chip clearance and allows coolant to reach the cutting zone effectively. This superior heat dissipation prevents thermal damage to heat-sensitive workpieces. This makes the wheels ideal for producing intricate and high-precision medical devices or machining electronic components where thermal integrity is paramount. The result is higher part quality and reduced scrap rates.
The Role of Electroplated Diamond Grinding Wheels
The true versatility of this technology shines with electroplated diamond grinding wheels. A diamond abrasive is essential for shaping extremely hard materials. These wheels deliver superior performance on materials where conventional abrasives fail. The versatility of electroplated diamond grinding wheels makes them invaluable for many specialized applications.
Key Applications for Diamond Wheels:
- Hard and Brittle Materials: They provide clean cuts on ceramics, carbides, glass, and quartz with minimal chipping.
- Complex Profiles: The electroplated process allows for plating diamond onto pre-formed cores, perfect for grinding intricate forms in tungsten carbide.
- High-Strength Composites: The cutting power of diamond makes these wheels effective for machining modern composite materials used in high-performance applications.
This ability to tackle a wide range of hard materials makes electroplated diamond grinding wheels a go-to solution for tool manufacturing and other specialized applications that demand ultimate precision. The single layer of diamond on an electroplated grinding wheel ensures consistent, high-quality results across many challenging jobs.

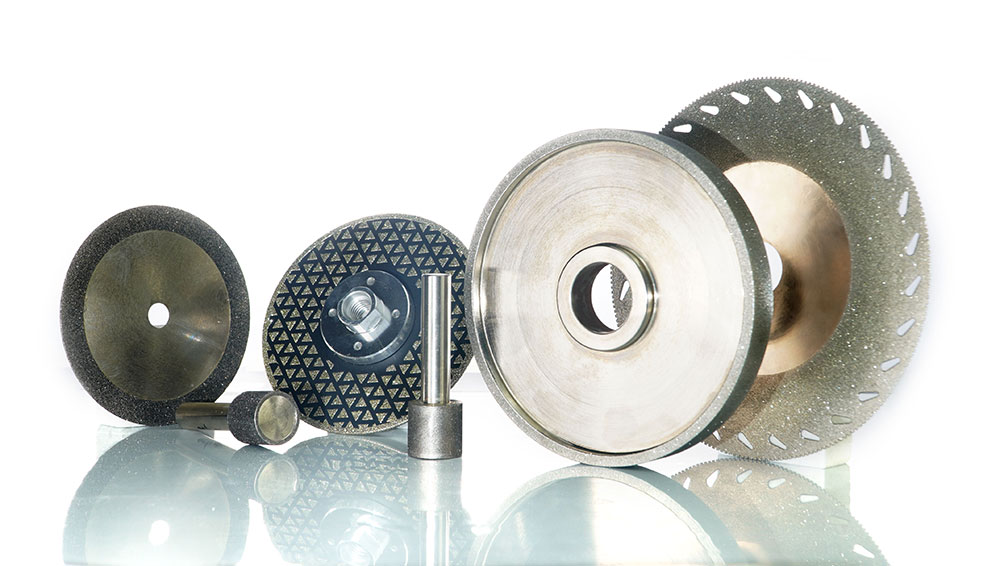

Why an Aimgrind Electroplated Grinding Wheel is a Smart Investment
Choosing the right tool is an investment in quality and efficiency. As a specialist in customized grinding solutions, Aimgrind engineers its electroplated grinding wheels for maximum performance. These wheels are not just a purchase; they are a strategic asset for any precision manufacturing operation.
Ultra-High Grit Retention and Durability
Aimgrind’s electroplated wheels are engineered for an exceptionally long service life. The manufacturing process creates a strong bond between abrasive and substrate. This secure attachment holds each diamond grain firmly in place, ensuring the wheel maintains its sharpness and cutting efficiency over extended periods. The result is a tool with superior durability and a longer wheel life. This inherent toughness makes the electroplated wheel a reliable choice for demanding applications where consistency is key.
Reducing Downtime and Operational Costs
The durability of an Aimgrind electroplated wheel directly reduces operational costs. A longer wheel life means fewer wheel changes and less machine downtime. This efficiency boost leads to significant long-term cost savings. The robust bond on the diamond particles eliminates the need for frequent dressing, maximizing production time. Aimgrind’s experience serving demanding industries like aerospace, tool manufacturing, and electronics reinforces the product’s suitability for high-stakes precision work. This focus on durability delivers tangible long-term cost savings for many specialized applications.
The Value of Replating and Reusing Cores
Aimgrind offers a key value proposition that enhances long-term cost savings: replating. Instead of discarding a worn wheel, you can reuse the core. This process involves stripping the old diamond layer and applying a new electroplated coating. Replating a core can be up to 30% less expensive than buying a new wheel. This service demonstrates the versatility of electroplated technology and its sustainable benefits.
Core Material Reusability The ability to replate a core depends on its material. Steel cores, the most common, offer excellent reusability.
Core Material Reusability Steel Multiple Times Titanium Reusable Carbon Fiber Reusable Aluminum Rarely Reusable
This approach maximizes the value of your initial investment and supports cost-effective production for various applications. The versatility of this system makes it a smart choice for modern manufacturing.
An electroplated grinding wheel offers unmatched precision, efficiency, and long-term value. The robust electroplated bond makes these tools essential for modern automated manufacturing. Aimgrind’s custom electroplated solutions can elevate your specific applications. Let our advanced electroplated technology help you meet future challenges.
Grind with Passion, Achieve with Aim.
FAQ
What makes an electroplated diamond wheel unique?
An electroplated diamond wheel has a single layer of abrasive grains. A nickel bond holds each diamond particle securely. This design creates an aggressive, free-cutting tool that maintains its shape for its entire lifespan, ensuring consistent performance.
Which materials are best for these wheels?
These wheels excel on hard, brittle materials. They are ideal for grinding ceramics, tungsten carbide, glass, and composites. The exposed diamond abrasive provides clean cuts with minimal chipping, making them perfect for high-precision jobs.
Can these wheels handle complex shapes?
Yes, they are ideal for creating intricate profiles. The electroplating process can apply a diamond layer to a pre-formed core of any shape. This capability makes them essential for specialized applications requiring high accuracy and complex geometries.
How does the single diamond layer improve performance?
The single layer exposes a high concentration of diamond grit. This structure provides maximum cutting point density. It allows for faster material removal and superior finishes across various applications, making the diamond wheel highly efficient.
