For cutting stainless steel, you need a specialized cutting wheel. The ideal cut-off wheels use abrasives like zirconia alumina or high-quality white aluminum oxide. With the global stainless steel market growing rapidly, efficient cutting is more important than ever.
Quick Tip: Always find the ‘INOX’ label on the cutting wheel. This mark on the cut off wheel confirms it is safe for your steel project. The right cutting wheel for stainless steel prevents heat damage and delivers a clean cut-off. Using the correct cut-off wheels ensures an efficient cut-off.
Key Takeaways
- Always use a cutting wheel marked ‘INOX’ for stainless steel. This label means it is safe and will not cause rust.
- Choose cutting wheels made with zirconia, ceramic, or pure white aluminum oxide. These materials cut stainless steel well.
- Use a thin cutting wheel, about .045 inches thick. This helps cut faster and keeps the steel from getting too hot.
- Do not use regular cutting wheels on stainless steel. They can put iron on the steel, which causes rust and damage.
Choosing the best cut-off wheel abrasive
Selecting the right abrasive is the most important step in finding the best cut-off wheel for your project. The material of the cutting wheel directly impacts its cutting speed, lifespan, and the quality of the final cut-off. You have a few excellent options for cutting stainless steel.
Zirconia and ceramic alumina wheels
Zirconia and ceramic alumina are high-performance abrasives. They offer superior results on hard metals like stainless steel. A ceramic cutting wheel provides a fast, cool cut-off. This prevents heat damage on sensitive metals. A zirconia cutting wheel is extremely durable and works well under high pressure, making it great for heavy-duty cutting.
Quick Comparison: Zirconia vs. Ceramic
Property Zirconia Abrasives Ceramic Abrasives Lifespan Long Very Long Pressure High pressure needed Low to moderate pressure Cost Less expensive More expensive Best For Heavy, high-pressure cutting Precision, heat-sensitive cutting
Choosing between these two cut-off wheels depends on your needs.
- You should use zirconia for heavy grinding on stainless steel. Its durability is perfect for high-intensity cutting tasks.
- You should use ceramic for precision work. This cutting wheel is ideal when you must avoid heat damage and discoloration on the steel.
White aluminum oxide: A sharp choice
You might hear that you should avoid aluminum oxide for stainless. This is only partly true. You should avoid standard aluminum oxide. However, a specialized white aluminum oxide cutting wheel is an excellent choice. These cut-off wheels are made with pure aluminum oxide. This purity ensures a non-contaminating, fast, and free cut-off on all metals, including stainless steel. They offer a great balance of performance and value for many cutting applications.
Why avoid a standard cut-off wheel for steel
Using a standard cut-off wheel for steel on a stainless workpiece creates serious problems. These standard cut-off wheels contain contaminants that ruin your project.
First, they cause corrosion. Standard cutting wheels often contain iron. When you perform a cut-off, tiny iron particles transfer to the stainless steel surface. This free iron contamination becomes a starting point for rust, defeating the purpose of using stainless steel.
Second, they generate excessive heat. This heat can damage the structural integrity of the steel, causing it to soften or deform. You can see this damage with your own eyes.
- Blue or Yellow Streaks: These colors on the steel surface are a clear sign of heat buildup. This “heat tint” indicates that the metal’s corrosion resistance may be weakened.
- Oxide Layers: Discoloration shows that oxide layers have formed. These layers can flake off and promote future corrosion.
Using the correct cutting wheel for steel ensures your stainless project remains strong and rust-free.
Key features of a cut off wheel
Beyond the abrasive material, you must consider the physical design of the cutting wheel. The shape, thickness, and certifications all play a crucial role in the safety and quality of your cut-off. Understanding these features helps you select the perfect tool for your stainless steel project.
Type 1 vs. Type 27 wheel design
You will find two primary shapes for cut-off wheels: Type 1 and Type 27. Each design offers unique advantages for different cutting tasks.
Type 1 (Flat) Cutting Wheel A Type 1 cutting wheel is completely flat. This design makes it the most efficient choice for general-purpose cutting. You should use it to make deep, 90-degree cuts into a workpiece. Its flat profile provides maximum cutting surface at a straight angle.
- Best for: Straight, clean cuts.
- Applications: Metal fabrication, general repair, and any task requiring a precise right-angle cut-off.
Type 27 (Depressed Center) Cutting Wheel A Type 27 cutting wheel has a raised hub at its center. This “depressed center” design allows the locking nut to sit inside the wheel. This feature prevents the nut from scratching your work surface, making it ideal for flush cutting and surface work. While you can use it for cutting, its design offers more flexibility for other tasks.
- Best for: Flush cutting and surface grinding.
- Applications: Smoothing welds, deburring sharp edges, and preparing surfaces.
Safety First! ⚠️
You must always use a Type 27 cutting wheel with an approved safety guard. The depressed center design also requires a special adaptor to ensure stability and prevent the wheel from interfering with your work.
Choosing the right shape depends entirely on your job. For a simple, straight cut-off on a piece of steel, a Type 1 cutting wheel is your best bet. For more complex jobs that involve cutting and grinding, a Type 27 offers greater versatility.
The right thickness for a cutting wheel
The thickness of your cutting wheel directly affects its speed, precision, and heat generation. When working with stainless steel, a thinner cutting wheel is almost always better.
Pro Tip: Look for cut-off wheels that are around .045 inches (or 1 millimeter) thick.
Why go thin?
- Less Heat: A thin cutting wheel removes less material with each rotation. This creates less friction and significantly reduces heat buildup, protecting the steel from discoloration and warping.
- Faster Cutting: With less material to move, the cutting wheel can slice through the metal more quickly and with less effort. This improves your efficiency.
- Cleaner Cut-off: Thinner cut-off wheels produce a cleaner, more precise cut with minimal burrs. This saves you time on finishing work later.
Using a thin cutting wheel ensures a fast, clean, and cool cut-off every time. It is a simple change that makes a big difference in the quality of your work on stainless projects. These thin cutting wheels are the industry standard for a reason.
The importance of the ‘INOX’ label
When selecting a cut-off wheel for steel, you will often see the word “INOX” printed on the label. This is the single most important feature to look for when cutting stainless steel.
INOX is a French term for stainless steel (acier inoxydable). On a cutting wheel, it serves as a guarantee. It certifies that the cutting wheel is free of iron, sulfur, and chlorine—contaminants that cause rust and corrosion on stainless surfaces. Using a standard cut-off wheel for steel can transfer these elements, ruining your workpiece.
This label is more than just a word. It signifies that the cutting wheels meet strict manufacturing standards. You can trust that these products are backed by quality and safety certifications, such as:
- EN12413: A European safety standard for bonded abrasive products.
- ISO 9001: An international standard for quality management systems.
- MPA: Certification from the Materials Testing Institute, ensuring product safety and quality.
Always check for the INOX label. It is your assurance that the cutting wheel is safe for your material and will deliver a professional, contamination-free result.
Aimgrind’s cutting wheel for stainless steel
Choosing the right abrasive and wheel type is crucial. However, for industrial or high-volume projects, you may need a solution tailored to your exact needs. Aimgrind specializes in high-performance, customized abrasive solutions. We provide more than just a product; we offer a partnership to optimize your cutting process.

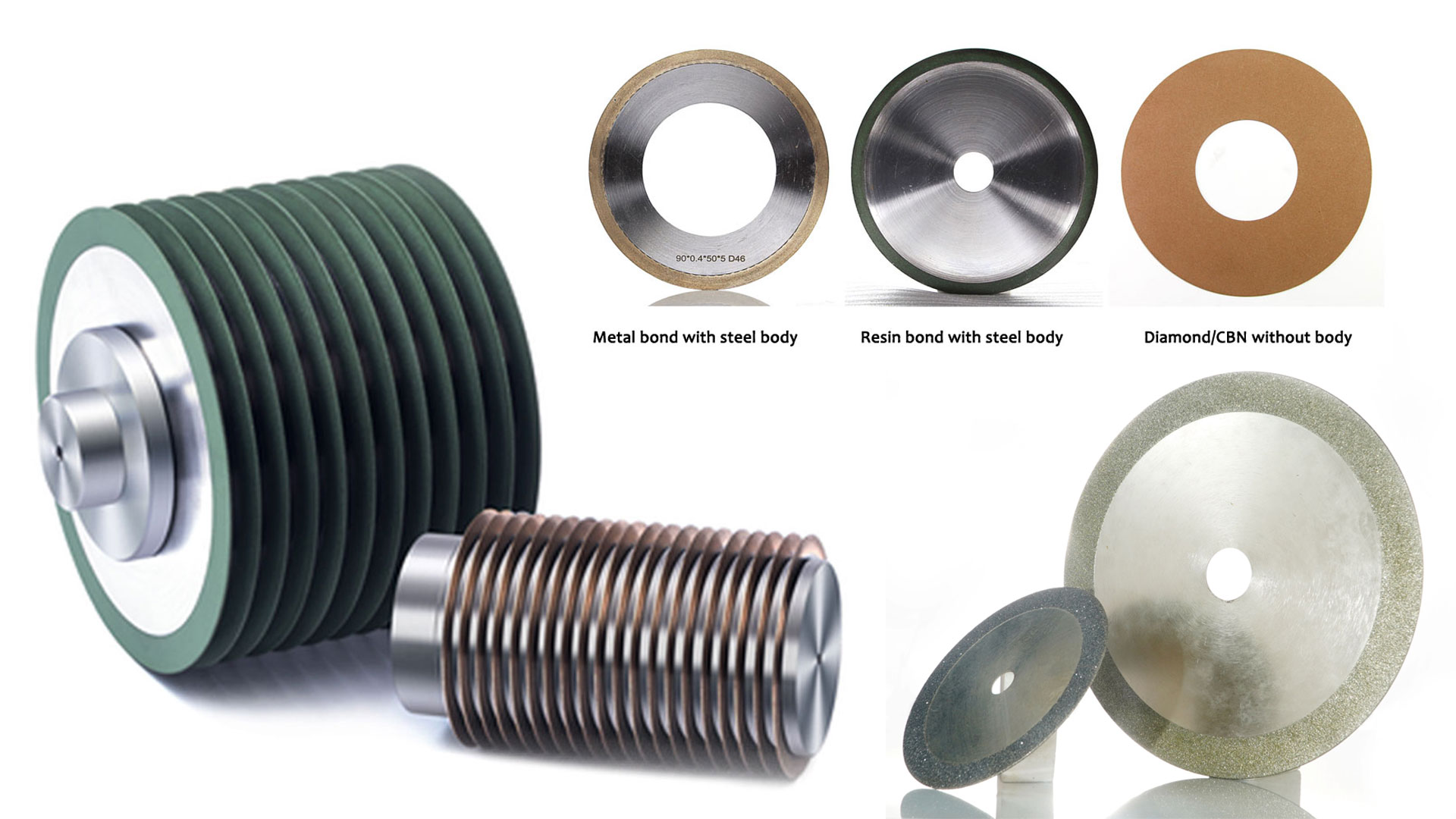

Aimgrind’s high-performance resin bond wheels
For tough materials like stainless steel, you need a cutting wheel that delivers consistent performance. Aimgrind’s resin bond cut-off wheels are engineered for this challenge. The specialized resin bond holds the abrasive grains securely, allowing for aggressive yet smooth cutting action on hard metals.
Why Choose Aimgrind’s Resin Bond Cutting Wheel?
- Cool Cutting: The formulation minimizes heat, protecting your stainless steel from damage.
- Durability: This cutting wheel is designed for a long service life, reducing downtime.
- Efficiency: You get a fast, clean cut, which improves your overall productivity.
This cutting wheel for steel provides the reliability you need for demanding jobs. Our cut-off wheels ensure every cutting task on steel is precise.
Custom solutions for your project
Every cutting application is unique. A standard cutting wheel might not provide the best results for your specific equipment or material grade. This is where Aimgrind’s expertise makes a difference. With nearly two decades of experience, we help you find the perfect cutting wheel. We analyze your process to match the ideal cutting wheel to your application.
Our goal is to enhance your productivity with a superior cutting wheel. Whether you need a specific diameter, thickness, or abrasive formula, we design a custom cutting wheel for your project. For a truly optimized cutting wheel for stainless steel, a personalized solution is the best path forward. Explore Aimgrind’s range of cutting wheels to see how our custom cut-off wheels can improve your work. We ensure the right cutting wheel for every application.
Your success with stainless steel depends on the right cutting wheel. For the best cut-off, you need a specific tool.
Key Takeaways for Your Next Cut-off:
- Select a thin cut off wheel, around .045 inches thick.
- Choose a cutting wheel with zirconia, ceramic, or white aluminum oxide abrasives.
Always look for the “INOX” label on cut-off wheels to guarantee a contamination-free cut-off. For specialized cutting needs, consulting an expert like Aimgrind ensures you get the perfect cutting wheel. The right cut-off wheels improve your productivity and deliver a precise cut-off on every steel project. This ensures a clean cut-off.
FAQ
What happens if I use a regular wheel on stainless steel?
You risk contaminating your project. Standard wheels contain iron, which transfers to the stainless steel during cutting. This contamination leads to rust and corrosion, defeating the purpose of using stainless steel. Always use a wheel marked “INOX” for the best results.
Can I use a cutting wheel for grinding?
You should not use a cutting wheel for grinding. Cutting wheels are thin and designed only for cutting. Using the side of the wheel for grinding can cause it to shatter, creating a serious safety hazard. Always use a proper grinding wheel for surface work.
Why is a thin wheel better for stainless steel?
A thin wheel, like a .045-inch one, cuts faster and creates less heat. This prevents your stainless steel from warping or discoloring. You also get a cleaner cut with fewer burrs, which saves you time on finishing work later.
What does “INOX” mean on a cutting wheel?
The “INOX” label is your guarantee that the wheel is safe for stainless steel. It certifies the wheel is free from contaminants like iron, sulfur, and chlorine. Using an INOX wheel prevents rust and ensures a clean, professional finish on your project.
