Dressing a grinding wheel is essential for your grinder’s peak performance. You will need a specialized dressing tool for this important task. The main categories include single-point diamond tools, rotary dressers, a dressing stick, and mechanical star dressers. This guide helps you choose the perfect tool to dress a grinding wheel. Using the correct dressing stick is key when dressing your grinding wheel, whether you are truing, cleaning, or shaping the grinding wheel.
Key Takeaways
- Dressing a grinding wheel makes it work better. It keeps the wheel clean and sharp.
- Different tools dress grinding wheels. Diamond tools are for exact work. Abrasive sticks clean the wheel. Star dressers are for rough work.
- Choose your dressing tool carefully. It depends on your grinder, what you need to do, and how smooth you want the finish.
- Truing makes the wheel round. Dressing cleans and sharpens it. Shaping gives the wheel a special form.
- Always be safe when dressing a wheel. Wear safety glasses and hold the tool firmly.
Tools for Dressing Your Grinding Wheel
Choosing the right tool is the first step to properly dressing your grinding wheel. Each type of dresser has a specific purpose, from high-precision shaping to quick, coarse cleaning. Let’s explore the main categories so you can find the perfect match for your job.
Single-Point and Multi-Point Diamond Tools
Diamond tools are the top choice for precision work. A single-point diamond dresser uses one industrial-grade diamond to achieve exceptional accuracy. You use these tools for several key tasks:
- Truing the wheel to make it perfectly round and flat.
- Sharpening the surface to expose fresh abrasive grains.
- Creating precise profiles for custom grinding jobs.
- Removing buildup or glazing from the wheel’s surface.
These tools are essential in tool rooms and industrial settings where accuracy is critical. For even greater efficiency, you can use multi-point diamond wheel dressers. These tools have multiple diamonds that contact the wheel at once. This design allows you to dress the wheel much faster and extends the tool’s life because the workload is shared across several points.
Pro Tip: For specialized applications in industries from precision tool manufacturing to woodworking, providers like Aimgrind offer a wide range of diamond tools. They can help you find the perfect tool for your diamond grinding wheels and specific process.
Rotary Diamond Dressing Tools
Rotary diamond dressers are high-performance tools used with CNC grinding machines. These dressers are rotating wheels or rollers covered in diamonds. They offer unmatched speed and precision for complex, high-volume production. You will find them in demanding industries like:
- Automotive
- Aerospace
- Bearing and gear manufacturing
- Cutting tool production
There are many types of rotary dressers, including profile rollers that impart a specific shape and form rollers that create profiles using CNC-controlled paths. This technology is ideal when you need to dress a grinding wheel with extreme accuracy and repeatability.
Abrasive Stick Dressers
An abrasive dressing stick is a simple and effective tool for light-duty work. These sticks are made from bonded abrasives like silicon carbide or aluminum oxide. You hold the dressing stick firmly against the moving grinding wheel to clean the surface or make small shape adjustments. A dressing stick is perfect for:
- Cleaning loaded or glazed wheels.
- Lightly shaping or forming a wheel profile.
- Dressing thin or delicate wheels.
Think of a dressing stick as an eraser for your grinding wheel. It quickly removes unwanted material and restores the cutting surface without the aggressive action of a diamond tool.
Star and Huntington Dressers
Star and Huntington dressers are mechanical tools designed for coarse dressing. A star dresser has several free-spinning, star-shaped steel wheels. When you press it against the grinding wheel, the stars spin and chip away at the abrasive surface. This action quickly removes heavy buildup and roughs up the surface.
These tools are great for general-purpose work on bench and pedestal grinders. They are not for precision tasks. You use them for dressing the wheel when a rough finish is acceptable.
Safety First!
Be very careful when using a Huntington-type dresser on a wheel clogged with soft metal like aluminum. The force can create stress and cause the grinding wheel to fracture or even explode. Always wear proper safety gear.
Choosing the Right Dressing Tool
With several types of dressers available, you need to match the tool to your specific situation. Your choice depends on the grinder you use, the task you need to perform, and the surface finish you want to achieve. This guide will help you compare your options and make the right decision.
Choosing by Grinder Type
The type of grinder you own is the first major factor in selecting a dressing tool. A simple bench grinder has very different needs than a high-precision CNC machine.
Bench and Pedestal Grinders: For general-purpose work on a bench grinder, a star dresser offers a great balance of cost and effectiveness. It quickly removes material and exposes fresh grit on coarse wheels. For cleaning a loaded wheel, a simple dressing stick is an excellent and affordable choice. You can use a single-point diamond for truing, but you may need to follow up with a dressing stick to sharpen the surface.
Precision Surface and CNC Grinders: These machines demand accuracy. Single-point diamond dressers are the standard for truing and shaping on a surface grinder. They provide the control needed for perfectly flat and square wheel faces. Modern CNC grinders often use integrated, automated systems with diamond-tipped tools or rotary diamond dressers to maintain the wheel’s profile with extreme precision during high-volume production.
Choosing by Task and Wheel Shape
What do you need to accomplish? Are you truing a new wheel, cleaning a glazed one, or creating a custom profile? The task at hand will point you to the right tool.
| Task | Recommended Tools | Best For |
|---|---|---|
| Truing | Single-Point Diamond Dresser, Star Dresser | Creating a perfectly round, flat surface (diamond) or quickly rough-truing a new wheel (star). |
| Dressing (Cleaning) | Abrasive Dressing Stick | Removing metal buildup (loading) or dull abrasive particles (glazing) from the wheel face. |
| Shaping | Profiled Diamond Tools (Chisel, Cone), Rotary Dressers | Creating specific angles, radii, or complex profiles for custom grinding jobs. |
For basic cleaning, a dressing stick effectively removes debris and restores the cutting surface. When you need to shape a complex profile, you will need a specialized tool like a chisel-type diamond dresser or a CNC-controlled rotary dresser.
Choosing by Required Finish
The tool you use to dress a grinding wheel directly impacts the surface finish on your workpiece. An aggressive dressing action creates a coarse finish, while a fine dressing action produces a smooth one.
For a Coarse Finish: If you need to remove a lot of material quickly, you want an open, aggressive grinding wheel surface. You can achieve this using a star dresser to fracture the abrasive grains. A multi-point diamond dresser moved quickly across the wheel also creates a rougher texture ideal for coarse grinding.
For a Fine Finish: Achieving a mirror-like finish requires a closed, fine wheel surface. Use a single-point diamond tool with a very slow traverse speed and light pressure. This technique creates a smoother wheel topography. After using a coarser tool, you can also use a dressing stick to refine the wheel’s surface for finer work on your grinder.
Need a Custom Solution? ⚙️
For specialized jobs involving unique materials or complex shapes, matching the right tool to your process is key. For custom applications with conventional or diamond grinding wheels, consulting with a specialist like Aimgrind can help you pair the perfect dressing tool and grinding wheel formula to your equipment.

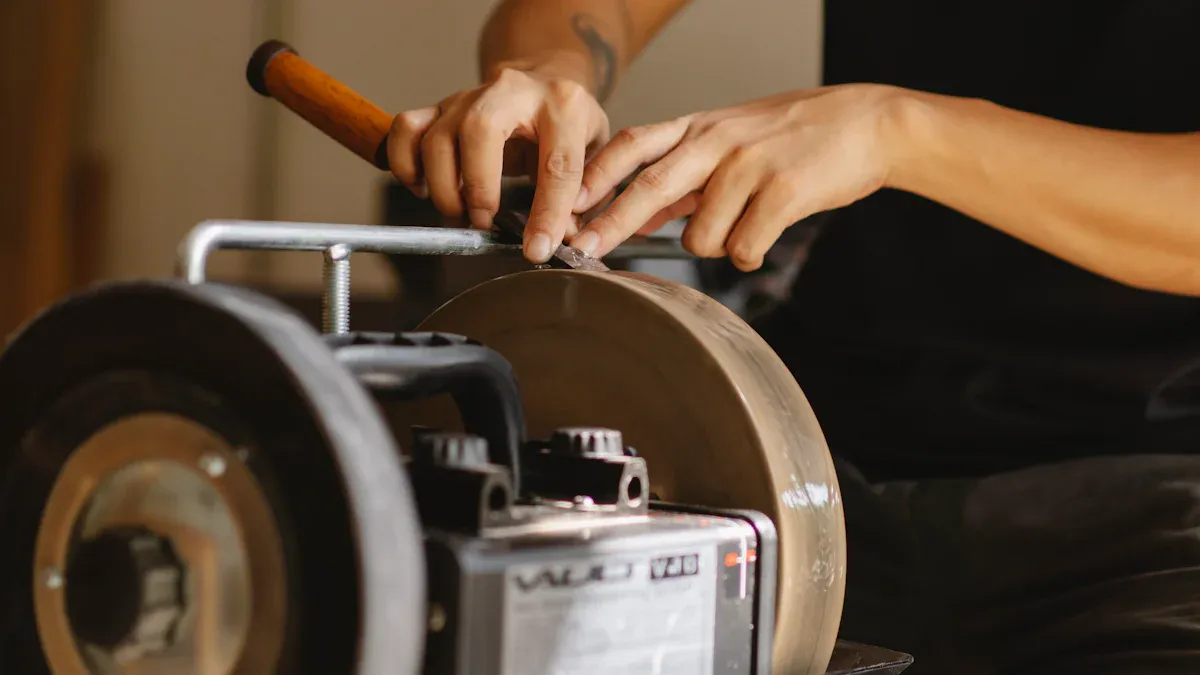

How to Dress a Grinding Wheel: Key Operations
Understanding the three main operations—truing, dressing, and shaping—helps you use the right tool for the job. Each action solves a different problem and prepares your wheel for top performance.
Truing Your Grinding Wheel
Truing makes your grinding wheel perfectly round and concentric with its spindle. You need to true a wheel that is out of balance. An untrued wheel can cause several problems with your workpiece.
- Chatter marks: These wavy lines appear when an imbalanced wheel vibrates.
- Spiral marks: An uneven wheel surface can leave a repeating spiral pattern.
- Striped patterns: If the wheel is not parallel to the table, it can leave stripes.
For precision truing, a single-point diamond dresser is your best choice. For coarse work on a bench grinder, a star dresser, also known as a ‘rattle wheel’, can quickly get a new wheel into shape.
Dressing for a Clean, Sharp Surface
Dressing your grinding wheel means cleaning and sharpening its surface. Over time, the wheel can become “loaded” or “glazed” with metal particles, which are essentially the same issue. This clogs the abrasive grains, causing poor cutting and excess heat. Properly dressing the wheel exposes fresh, sharp abrasive. This action improves cutting performance and reduces friction, which helps prevent burning your workpiece.
Tool Tip: 💡
An abrasive dressing stick is the ideal tool for this job. You hold the dressing stick firmly against the moving wheel to scrub away debris. A simple dressing stick effectively restores the cutting surface. For fine dressing, a T-shaped diamond tool works well, but a dressing stick is excellent for general cleaning.
Shaping a Specific Profile
Shaping involves creating a specific profile, angle, or radius on the wheel face for custom jobs. You might need to dress a grinding wheel with a specific shape to grind threads or create rounded corners.
To create a radius, you can use specialized tools like a concave radius dresser or a “rat tail” style dresser. For more complex forms, like a V-profile for thread grinding, you might use a CNC grinder to program the exact angles. This advanced technique ensures you get a perfect shape for highly precise tasks.
Choosing the best tool to dress a grinding wheel depends on your specific task and grinder. For high-precision work, diamond tools are your best option. You can use abrasive sticks for light cleaning and mechanical dressers for coarse work on your bench grinder. With this knowledge, you can confidently select the right tool to keep your grinding wheel in top condition. For complex jobs, expert support from specialists like Aimgrind ensures your equipment and processes achieve maximum efficiency.
FAQ
How often should you dress a grinding wheel?
You should dress your wheel when you see buildup or a shiny, glazed surface. A drop in cutting performance or increased heat are also clear signs. Regular dressing ensures your wheel works safely and effectively, giving you better results on every project.
Can you use one tool for all dressing tasks?
No, different tools have specific jobs. You use a star dresser for coarse work on a bench grinder. You need a diamond tool for precision truing. An abrasive stick is best for light cleaning. Matching the tool to the task gives you the best results.
What is the difference between truing and dressing?
Truing corrects the shape of the wheel, making it perfectly round to prevent vibration. Dressing cleans and sharpens the wheel’s surface by removing clogged material. You true for balance and shape, but you dress to restore cutting action.
Is dressing a grinding wheel dangerous? ⚠️
Yes, you must always prioritize safety. Wear safety glasses and a face shield. Hold the dressing tool firmly on the tool rest. Never stand directly in line with the wheel’s rotation. Following these steps helps you avoid serious injury.
