Your choice between single-point and multi-point diamond dressers depends on your grinding needs. Single-point diamond dressers offer high precision for a simple profile. Multi-point diamond dressers excel at high-volume, general-purpose dressing. This guide helps you select the right diamond dresser. Choosing the correct grinding wheel dressers improves the performance, efficiency, and quality of your grinding work.
Key Takeaways
- Single-point diamond dressers offer high precision for simple shapes and straight lines on grinding wheels.
- Multi-point diamond dressers are best for high-volume work because they last longer and are very durable.
- Choose a single-point dresser for jobs needing exact shapes and a smooth finish.
- Choose a multi-point dresser for general grinding where speed and long tool life are most important.
- Matching the right dresser to your grinding wheel improves how well it works and makes your work better.

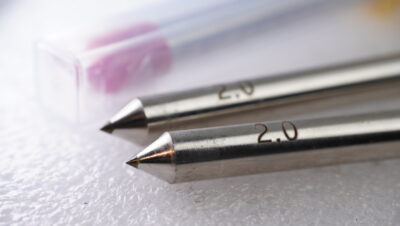

What are single-point diamond dressers?
Single-point diamond dressers are fundamental tools for maintaining your grinding wheels. They are designed for accuracy and simplicity in your dressing operations.
Definition and core function
A single-point tool consists of a single, carefully selected industrial diamond. This diamond is mounted at the tip of a hardened steel shank. The rigid shank eliminates vibration during use, which helps you achieve a better workpiece quality. Your main goal when using these diamond dressers is to true the wheel, making it perfectly round, and to dress it, exposing fresh abrasive grains for effective grinding.
Advantages: High precision and versatility
The primary advantage of single point diamond dressers is their ability to deliver exceptional precision. The single contact point allows you to create a very specific and clean profile on the grinding wheel‘s surface. This control is essential when your work demands high dimensional precision. You can use them on a wide variety of wheel types, making them a versatile choice for many workshops.
Limitations: Maintenance and tool life
The lifespan of these diamond dressers can vary greatly. In a high-volume industrial setting, a tool might last only 90 days. However, with proper care, it can serve you for years. The single diamond point concentrates all the wear in one small area. This focused wear requires you to perform regular maintenance.
💡 Pro Tip: You should periodically rotate the diamond dresser in its holder. This action presents a new, sharp edge to the wheel, which extends the tool’s life and maintains dressing efficiency.
Best applications for a single-point tool
You should choose a single-point diamond dresser for applications that require creating simple forms and straight profiles. They are the ideal tool for toolroom grinding, surface grinding, and any job where achieving a precise finish is more important than high-volume dressing speed.
Exploring multi-point diamond dressers
When your work demands durability and speed, you should consider multi-point diamond dressers. These tools offer a different approach to wheel maintenance, focusing on longevity and efficiency for high-volume operations.
Definition and construction
A multi-point diamond dresser contains multiple diamond particles set on a single shank. Unlike a single-point tool, the workload is shared across several points. Manufacturers create these robust diamond dressers through a sintering process.
- Fine diamond particles are mixed with an alloy powder bonding agent.
- The mixture is sintered, or heated, to create a solid, durable head.
- Diamonds can be arranged in specific patterns, such as 5×5 or 6×6 rows, to ensure consistent contact with the wheel.
This construction makes the tool exceptionally tough and ready for demanding tasks.
Advantages: Durability and consistency
The main benefit of multi point diamond dressers is their extended tool life. The design distributes wear evenly across all the diamond tips. This shared workload means each point wears down much slower, giving you a longer-lasting tool. This stability also helps you achieve consistent results over time and minimizes the risk of chipping during the grinding process. You get reliable performance with less frequent tool replacement, which boosts your overall efficiency.
Limitations: Profile complexity and cost
These diamond dressers have some limitations. They are not the best choice for creating intricate or complex profiles on a grinding wheel. The multiple contact points make it difficult to achieve the sharp, precise angles that a single-point tool can produce. The initial cost of a multi-point tool can also be higher. However, you should weigh this against their longer lifespan in high-volume settings.
When to use multi point diamond dressers
You should use multi-point tools for general-purpose dressing where speed and durability are your top priorities. They are perfect for high-volume industrial grinding applications. If your grinding work involves a simple wheel profile and you need to dress wheels quickly and consistently, this tool is an excellent choice.

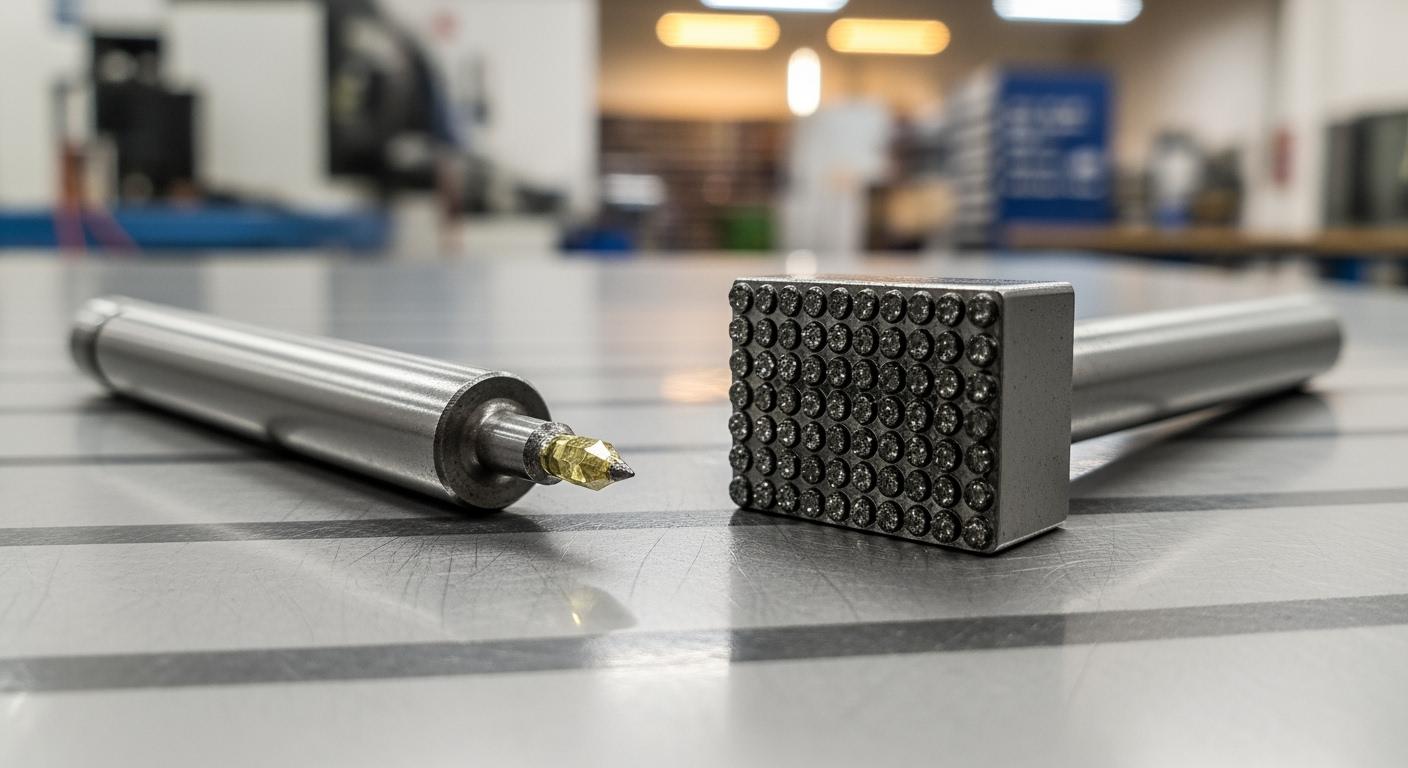

Direct comparison: Single point vs. multi-point
Choosing the right tool involves a direct comparison of their strengths and weaknesses. Your application’s demands for accuracy, cost, and operator involvement will guide your decision.
To simplify your choice, here is a quick comparison table:
| Feature | Single-Point Dresser | Multi-Point Dresser |
|---|---|---|
| Precision | ✅ High | ⭐ Good |
| Tool Life | ⭐ Good | ✅ Excellent |
| Initial Cost | ✅ Low | ⭐ High |
| Long-Term Value | ⭐ Good | ✅ Excellent |
| Maintenance Needs | High (Requires rotation) | Low (Use until worn) |
| Ideal Application | Precision profiles, toolrooms | High-volume, general use |
Dressing accuracy and surface finish
Your choice of diamond dresser directly impacts the final quality of your workpiece. Single point diamond dressers give you maximum control. The single diamond tip allows you to create a sharp, clean, and exact profile on the grinding wheel. This level of control is essential for jobs that demand tight tolerances and high precision.
Multi point diamond dressers create a different kind of surface. Because multiple diamonds contact the wheel, they produce a more open and free-cutting texture. This can result in a finer dress at the same traverse speed, improving the wheel’s cutting action for general-purpose grinding. While they are very consistent, they cannot match the sharp-cornering ability of a single-point tool.
Tool life and operational cost
When you evaluate cost, you must look beyond the initial price tag. Multi-point diamond dressers distribute the dressing force across several diamond points. This design significantly reduces wear on any single point and extends the tool’s life. While these diamond dressers have a higher initial cost, their durability means you replace them less often. This reduces downtime and lowers your long-term operational costs, especially in high-volume operations.
Single-point diamond dressers have a lower upfront cost, making them an attractive option. However, all the wear is focused on one small diamond. This concentration means the tool wears out faster and requires more frequent replacement in heavy-use environments. Over time, these replacement costs can add up, increasing your total operational expenses.
Maintenance and operator skill
The two types of diamond dressers demand different levels of operator attention. Using single-point tools effectively requires skill and consistent maintenance. You must rotate the tool regularly to present a new, sharp edge to the wheel. This simple action prevents the diamond from developing a flat spot and extends its useful life. An experienced operator knows how to manage this Prozess to maximize efficiency.
💡 Note: Multi-point tools are much more forgiving. They are designed to be used until they are completely worn out, with no rotation needed. This simplicity makes them a great choice for workshops with operators of varying skill levels. You can achieve consistent results with minimal tool management.
Maximizing performance of diamond grinding wheels
Your choice of diamond dresser is critical for maintaining the integrity of high-quality grinding wheels. Proper dressing ensures you get the best results from your investment, leading to better efficiency and part quality.
The impact of dressing on wheel performance
The process of dressing a grinding wheel directly influences its performance. A worn dressing tool can alter the wheel’s geometry and sharpness. This wear changes the depth of cut, which affects the wheel’s profile and its cutting efficiency. A poorly dressed wheel can lead to inaccurate grinding and a lower quality finish on your workpiece. Consistent dressing with the right tool maintains the wheel’s shape and exposes fresh abrasive grains for optimal grinding.
Matching the dresser to your grinding wheel
You must match your diamond wheel dressers to your specific grinding wheel. Consider these factors:
- Wheel Size: Larger wheels often require more durable diamond dressers, like multi-point diamond dressers.
- Grit Size: Coarse-grit wheels are best dressed with a sturdy diamond dresser, while fine-grit wheels need a tool that can create a smoother surface.
- Bond Type: The hardness of the wheel’s bond material affects how easily it can be dressed.
Choosing the correct grinding wheel dressers ensures you do not damage the wheel and achieve the desired surface finish.
Tips for dressing Aimgrind diamond grinding wheels
Specialized tools require specialized care. For high-performance products like Aimgrind‘s diamond grinding wheels, using the correct diamond grinding wheel dresser and procedure is essential for optimal results and longevity. A well-dressed wheel maximizes your grinding efficiency.
💡 Aimgrind Expert Tip: Always ensure your diamond wheel grinding dressers are securely mounted and presented to the wheel at the correct angle. This simple step improves grinding wheel performance and extends the life of both your wheel and your dressing tool.
How to choose the right diamond dresser
Selecting the correct diamond dresser ensures your grinding operations run smoothly. You can make an informed decision by evaluating your specific needs. This guide provides a clear path to choosing the best tool for your job.
Analyzing your grinding application
You should start by analyzing the details of your grinding process. The right tool depends on the job’s specific requirements. Use this checklist to guide your decision.
- Grinding Wheel Specifications: Look at your wheel’s size, grit, and bond type. Large, coarse-grit wheels often need durable multi-point diamond dressers. Fine-grit wheels may require single-point diamond dressers for a smoother finish.
- Required Finish and Precision: Determine the level of accuracy your workpiece needs. If you need to create sharp corners or achieve a high-precision surface, a single-point tool is your best option.
- Profile Complexity: Consider the shape you need to create on the wheel. Simple, straight profiles are perfect for single-point tools. General-purpose dressing without complex shapes is ideal for multi-point diamond wheel dressers.
Considering production volume and budget
Your production schedule and budget play a significant role in your choice. You must balance initial costs with long-term value to maximize efficiency.
High-volume production environments benefit from multi-point grinding wheel dressers. They have a higher initial cost but last much longer. This durability reduces machine downtime and lowers your overall operational expenses. For high-output grinding, they offer excellent long-term value.
Low-volume operations or toolrooms may find single point diamond dressers more economical. Their lower upfront cost makes them an accessible choice. You will replace them more often in heavy use, but for occasional or light-duty work, they are a cost-effective solution.
The role of single point diamond dressers in precision work
You cannot compromise on accuracy in high-precision work. This is where single-point diamond dressers truly excel. The single diamond point gives you complete control over the dressing process. You can create an exceptionally clean and accurate wheel surface. This control is essential for achieving tight tolerances and a superior quality finish. The right diamond grinding wheel dresser is key to successful precision grinding.
💡 Need Expert Advice?
Choosing the perfect diamond dresser can be complex. The specifications of your grinding wheel and your desired outcome are critical factors. To ensure you match the right grinding wheel dressers to your process, you can consult with experts. The team at Aimgrind can help you analyze your application and recommend the ideal tool to optimize your results.
Your decision between diamond dressers comes down to a simple trade-off: precision or durability. Choosing the right diamond dresser optimizes your grinding efficiency and protects valuable assets like high-quality diamond grinding wheels. You can now confidently select the best diamond wheel dressers for your grinding needs.
💡 Final Takeaway: For specialized grinding applications using multi-point diamond dressers or other diamond dressers, consult with the experts at Aimgrind to refine your process and achieve peak performance.
FAQ
How often should you dress a grinding wheel?
You should dress your wheel when you notice a drop in cutting performance or see a poor surface finish. The frequency depends on your specific grinding job and the material you are working with. Consistent dressing maintains wheel efficiency.
Can you use one type of dresser for all wheels?
It is not recommended. You should match the dresser to the wheel’s size, grit, and bond. A coarse wheel needs a durable dresser, while a fine-grit wheel requires a more precise tool for a smooth finish.
What happens if you forget to rotate a single-point dresser? 😥
Forgetting to rotate the tool creates a flat spot on the diamond. This flat spot reduces dressing sharpness and leads to a poor wheel surface. Your workpiece quality will suffer, and the tool will wear out much faster.
Does the size of the diamond in the dresser matter?
Yes, the diamond size is important. You should choose a dresser with a diamond size appropriate for your grinding wheel’s grit. A larger diamond works well for coarse-grit wheels, while a smaller diamond is better for fine-grit wheels.
