Your choice of dressing tools is a critical decision. It directly impacts grinding wheel precision, grinding wheel lifespan, and operational cost. Improper dressing can accelerate grinding wheel wear by up to 40%. Proper grinding wheel dressing lets you control the grinding wheel surface for optimal performance. This dressing tool comparison clarifies the roles of different diamond dressers.
- Single-point dressers offer precision for simple forms.
- Rotary dressers provide consistent performance for high-volume production.
- Diamond cluster dressers deliver durability for rough dressing.
Key Takeaways
- Dressing tools clean and reshape grinding wheels. This helps them cut well and last longer.
- Single-point dressers are good for general use. They are simple and cost less.
- Rotary dressers work best for big jobs. They offer high precision and speed.
- Diamond cluster dressers are for tough jobs. They remove a lot of material quickly.
- Choosing the right tool helps your grinding wheel work its best. It saves money and improves quality.
Understanding Grinding Wheel Dressing
Your grinding wheel is a powerful tool, but it needs regular maintenance to perform its best. This maintenance is called grinding wheel dressing. Understanding how dressing tools work is the first step toward achieving perfect results.
What Is a Dressing Tool?
A dressing tool is a specialized instrument you use to clean and reshape the surface of a grinding wheel. Think of it as a reset button for your wheel. Over time, the grinding wheel can become loaded with material chips or glazed with dulled abrasive grains. Dressing tools, or dressers, fix these problems. The process of dressing breaks away a tiny layer of bonding material and worn-out particles. This action accomplishes several key tasks:
- It removes clogged materials and exposes fresh, sharp abrasive grains.
- It restores the grinding wheel to its correct shape for precise grinding.
- It cleans the wheel surface, allowing for better coolant flow and preventing overheating.
These dressers ensure your grinding wheel cuts cleanly and efficiently every time.
Why Proper Dressing Is Crucial
Proper grinding wheel dressing is essential for quality, efficiency, and safety. When you skip dressing, your grinding wheel becomes ineffective. Loading and glazing lead to poor surface finishes and inaccurate workpiece dimensions. This forces you to spend more time on each part, hurting your productivity.
Proper dressing is not just about maintenance; it’s about unlocking your grinding wheel’s full potential. Consistent grinding wheel dressing ensures you get the results you need.
Regular dressing with the right dressing tools restores the wheel’s cutting ability. This leads to faster material removal and a superior finish. Furthermore, a well-maintained grinding wheel is a safer grinding wheel. Proper dressing helps keep the wheel balanced, which reduces dangerous vibrations. This makes the entire operation safer for you. Ultimately, a consistent dressing routine extends the life of your grinding wheel and guarantees high-quality, accurate results.
Single-Point Diamond Dressers
Single-point diamond dressers are the most common and versatile type of dressing tool. You can think of a single point diamond dresser as a precision pen with a natural diamond tip. You use this tool to perform straight, form, and radius dressing on your grinding wheel. These dressers are fundamental for many workshops.
Best Applications and Use Cases
You will find single-point dressers are excellent for general-purpose dressing. They are ideal for straight-pass dressing on medium to large grinding wheel faces. Their versatility makes them a go-to choice for various applications. You can use these diamond dressers on many types of grinding wheels, including:
- Aluminum oxide wheels
- Silicon carbide wheels
- Ceramic abrasive wheels
This adaptability makes single-point dressers a valuable tool for shops that handle diverse materials and grinding wheel types. Proper dressing with these tools is key to maintaining your grinding wheel.
Performance and Precision
The performance of single-point dressers depends heavily on the quality of the diamond and your dressing technique. A high-quality diamond tip provides superior hardness and wear resistance. This ensures long-lasting performance and consistent dressing results. For achieving high precision, you must carefully control the infeed and traverse speed during the dressing process. Correct dressing restores the grinding wheel surface, which is crucial for part accuracy. The sharp point allows for fine dressing, leading to a better surface finish on your workpiece. Consistent dressing ensures optimal grinding wheel performance.
Core Advantages and Disadvantages
Single-point diamond dressers offer a great balance of performance and cost. Their simple design makes them easy to use and highly effective for many dressing tasks.
Key Advantage: These dressers have a lower initial price point. This makes them an excellent choice where stationary dressing is preferred and budget is a consideration.
However, the single diamond point can wear down, affecting dressing performance over time. You must rotate the tool periodically to present a new sharp edge to the grinding wheel. This regular maintenance ensures consistent dressing and extends the life of both the grinding wheel and the dressers themselves. Proper dressing is essential for top performance.
Rotary Diamond Dressers
Rotary diamond dressers are powerful tools designed for high-volume, automated grinding operations. Unlike a single-point tool, a rotary dresser is a wheel embedded with diamond particles that rotates as it dresses your grinding wheel. This continuous motion provides exceptional consistency and efficiency, making these dressers a cornerstone of modern manufacturing.
Best Applications and Use Cases
You will find rotary diamond dressers are indispensable in industries that demand high precision and repeatability. Their automated dressing capability makes them perfect for large-scale production where consistency is key. These dressers excel in applications involving complex profiles and tight tolerances. Key industries include:
- Automotive: Manufacturers use these diamond dressers for grinding engine parts and gears, ensuring every component meets strict quality standards.
- Aerospace: The aerospace sector relies on rotary dressers for producing critical components like turbine blades that must withstand extreme conditions.
- Medical: You can use them for creating precision surgical tools and implants.
The consistent dressing performance of these tools is vital for maintaining the integrity of the grinding wheel.
Performance and Precision
The performance of rotary diamond dressers is unmatched in automated environments. The rotating action ensures even wear across the dresser, which translates to a highly predictable and consistent dressing process. This superior dressing control leads to better part accuracy and a finer surface finish on your workpiece. The continuous dressing action exposes fresh diamond grit on the grinding wheel, resulting in cooler cuts and more efficient material removal. This level of performance is crucial for dressing hard grinding wheels. Your control over the rotary speed and direction gives you great flexibility, enhancing the overall performance of your grinding wheel.
Core Advantages and Disadvantages
Rotary dressers offer significant advantages in production environments, but you must also consider their requirements. The primary benefit is their incredible efficiency and the consistent performance they bring to the dressing process.
The long life and automated nature of these diamond dressers reduce setup times and boost production rates, making them ideal for lights-out manufacturing.
However, the advanced technology of rotary dressers comes with a higher initial investment. The cost can be a major consideration for smaller shops. Additionally, operating these systems effectively requires skilled technicians. The complexity of setting up the dressing parameters for optimal grinding wheel performance means you need a knowledgeable team to get the most from these powerful diamond tools. Proper dressing with these dressers ensures top-tier performance.
Diamond Cluster Dressers
Diamond cluster dressers are your heavy-duty solution for tough dressing jobs. These tools feature multiple natural diamond stones set into a single matrix. Unlike a single-point tool, these diamond dressers distribute the workload across several points. This design makes them incredibly durable and effective for aggressive dressing tasks. You use these dressers to quickly restore the cutting ability of a grinding wheel.
Best Applications and Use Cases
You will find diamond cluster dressers are perfect for applications that require rapid stock removal. Their robust construction makes them ideal for general-purpose dressing where precision is secondary to speed. The primary function of these diamond dressers is to handle rough dressing operations efficiently. You can use them for:
- Rough dressing of your grinding wheel.
- Dressing of rough grinding wheels.
- Coarse dressing of a grinding wheel in sizes up to 80 grit.
These dressers are the workhorses you need for preparing a grinding wheel before a finishing pass with a finer tool. Proper dressing with these tools sets the stage for subsequent precision work.
Performance and Precision
The performance of diamond cluster dressers excels in high-volume environments. The multiple diamond points create a larger contact area with the grinding wheel. This allows for a much faster dressing rate compared to single-point tools. This enhanced performance means you can complete the dressing process more quickly, improving overall efficiency. While these dressers are not designed for high-precision form dressing, their performance in stock removal is outstanding. The consistent dressing action ensures your grinding wheel is ready for the next task. The main goal of this dressing is to restore the grinding wheel surface, not to create intricate profiles.
Core Advantages and Disadvantages
The main advantage of diamond cluster dressers is their durability and cost-effectiveness for rough dressing. The shared load across multiple diamond points extends the tool’s life significantly.
The long lifespan and aggressive dressing capability make these dressers a smart investment for shops that perform a lot of rough grinding. This performance ensures your grinding wheel is always ready.
These diamond dressers offer excellent performance for their intended purpose. However, you should not use them for tasks requiring a high-precision finish. The nature of cluster dressing creates a coarser surface on the grinding wheel. This makes them unsuitable for final dressing operations where a smooth workpiece finish is critical. Your choice of dressing tool must match the job.
Aimgrind’s Expertise in Diamond Tools
Choosing the right dressing tools is essential for your grinding wheel performance. Aimgrind is a specialist in customized grinding solutions. With nearly two decades of experience, we understand the challenges you face. We provide high-quality grinding wheel dressers to improve your dressing process. Our range of diamond tools caters to diverse needs. You can find solutions for precision form dressing or general-purpose applications. Proper dressing with our tools ensures your grinding wheel operates at its best.
Custom Solutions for Your Application
Your application has unique demands. Aimgrind delivers custom dressing tools to meet those specific needs. The automotive sector, for example, requires specialized dressers for machining lightweight materials. We engineer high-quality grinding wheel dressers for such challenges. Our expertise extends to creating unique dressing tools for various industries. We design custom diamond tools for:
- High-production cabinet manufacturing lines.
- Trimming carbon fiber body panels in the automotive industry.
- Machining carbon fiber bicycle frames for sporting goods.
This level of customization ensures your dressing process is perfectly matched to your grinding wheel and material. Our high-quality grinding wheel dressers optimize your dressing performance.
The Aimgrind Advantage in Durability
Durability is key to cost-effective dressing. Aimgrind’s high-quality grinding wheel dressers are built to last. We are committed to quality and your satisfaction. Our diamond dressers provide superior wear resistance, extending the life of your grinding wheel. This durability means fewer tool changes and more consistent dressing results. We help you maintain your grinding wheel with reliable dressing tools. Our goal is to enhance your productivity and efficiency. We believe in our mission.
Grind with Passion, Achieve with Aim
Explore our range of high-quality grinding wheel dressers to find the perfect solution for your dressing needs. You can find the right dressers for your grinding wheel on our Diamond Tools product page.

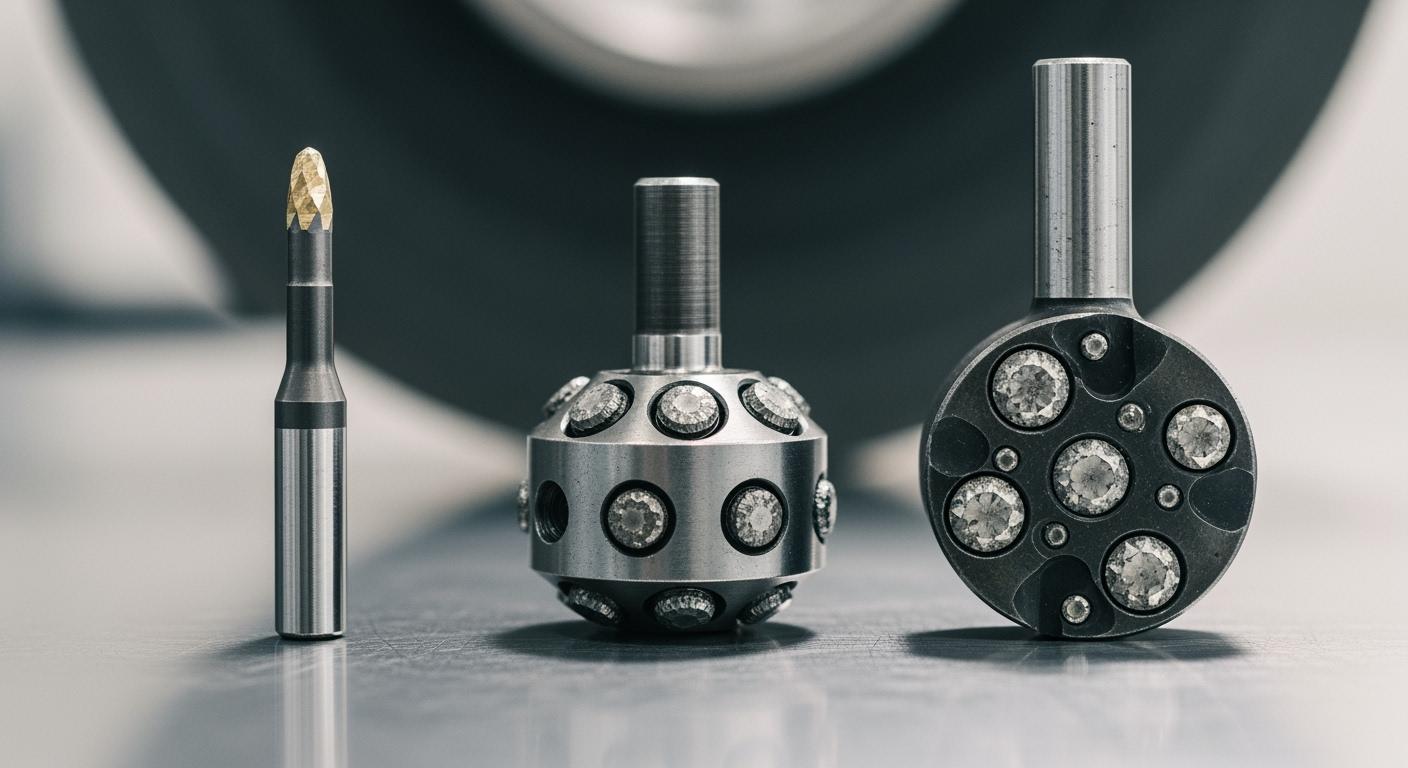

Dressing Tool Comparison: Key Differences
Choosing the right tool is a key part of your grinding wheel dressing strategy. This dressing tool comparison table helps you see the main differences at a glance. You can use it to match the best dressing tools to your specific job.
| Feature | Single-Point Dressers | Rotary Dressers | Diamond Cluster Dressers |
|---|---|---|---|
| Application and Wheel Type | You use these for general-purpose dressing on conventional wheels like aluminum oxide. They work well for simple shapes and small grinding wheel setups. These dressers are not for vitrified CBN wheels. | These are best for high-volume production and automated grinding wheel dressing. The rotary action is ideal for complex profiles and dressing hard grinding wheel types. | You use these for heavy-duty, rough dressing. They are great for large grinding wheel faces and coarse grit wheels. Their main job is fast material removal, not fine detail. |
| Precision and Surface Finish | These dressing tools offer good precision for straight or simple radius dressing. The final surface finish depends on the diamond quality and your technique. A worn single-point can leave marks on the grinding wheel. | These provide the highest precision and a consistent surface finish. Rotary dressers are custom-formed for complex shapes, ensuring excellent performance and accuracy for every dressing cycle. | These dressers are for coarse dressing and create a rougher grinding wheel surface. You should not use them for finishing work. Their performance is focused on speed, not precision. |
| Tool Life and Initial Cost | These have a low initial cost, with some single-point tools starting around $15. The single diamond point wears down faster, so tool life is shorter. You must rotate the tool to maintain dressing performance. | These have a high initial investment. However, their long life in automated systems makes them cost-effective for high production. The even wear across the diamond surface extends their performance. | These offer a great balance of cost and durability. A cluster tool with multiple diamond points costs more than a single-point tool but lasts much longer. This makes them a smart choice for frequent rough dressing. |
| Cycle Time and Efficiency | The dressing process is often manual or semi-automated, leading to longer cycle times. The efficiency of these dressing tools is best for low-volume or job shop work where setup changes often. | These offer the fastest cycle times and highest efficiency. The automated dressing process is quick and repeatable. This makes them perfect for “lights-out” manufacturing and keeping your grinding wheel in top shape. | The dressing cycle is faster than with single-point dressers for roughing. They quickly restore the grinding wheel surface. This improves efficiency in operations that need aggressive dressing before a final pass. |
This dressing tool comparison shows your choice impacts your grinding wheel. Proper grinding wheel dressing is key. Your grinding wheel dressing depends on your needs.
- Single-point dressers: You get versatility for your grinding wheel.
- Rotary dressers: You achieve automated precision for your grinding wheel.
- Diamond cluster dressers: You get durable dressing for your grinding wheel.
The best dressing tools balance your budget, volume, and precision needs. Partner with an expert like Aimgrind. We help you find the perfect customized dressing tools. This ensures optimal performance from every single-point or rotary dressing of your grinding wheel. Proper dressing with the right dressers keeps your grinding wheel in top shape.
FAQ
How often should I perform dressing on my grinding wheel?
You should perform dressing on your grinding wheel whenever you notice poor performance. A good dressing schedule depends on your work. Consistent dressing is key. Proper dressing ensures your grinding wheel stays sharp. This dressing keeps your grinding wheel ready for any job.
Can I use one dressing tool for every grinding wheel?
No, you should match your dressers to the grinding wheel. A coarse grinding wheel needs a different dressing approach than a fine one. The right dressing tool for your grinding wheel ensures optimal performance. Your dressing choice impacts the grinding wheel surface.
What happens if I skip dressing my grinding wheel?
Skipping the dressing process makes your grinding wheel inefficient. The grinding wheel becomes loaded with material. This leads to poor surface finishes and inaccurate parts. Regular dressing is essential for every grinding wheel. Proper dressing maintains your grinding wheel’s cutting ability.
Does the dressing speed affect my grinding wheel?
Yes, the dressing speed directly impacts your grinding wheel. A faster dressing pass creates a rougher grinding wheel surface for aggressive cutting. A slower dressing pass produces a finer surface on the grinding wheel for finishing work. Your dressing technique controls the grinding wheel.
