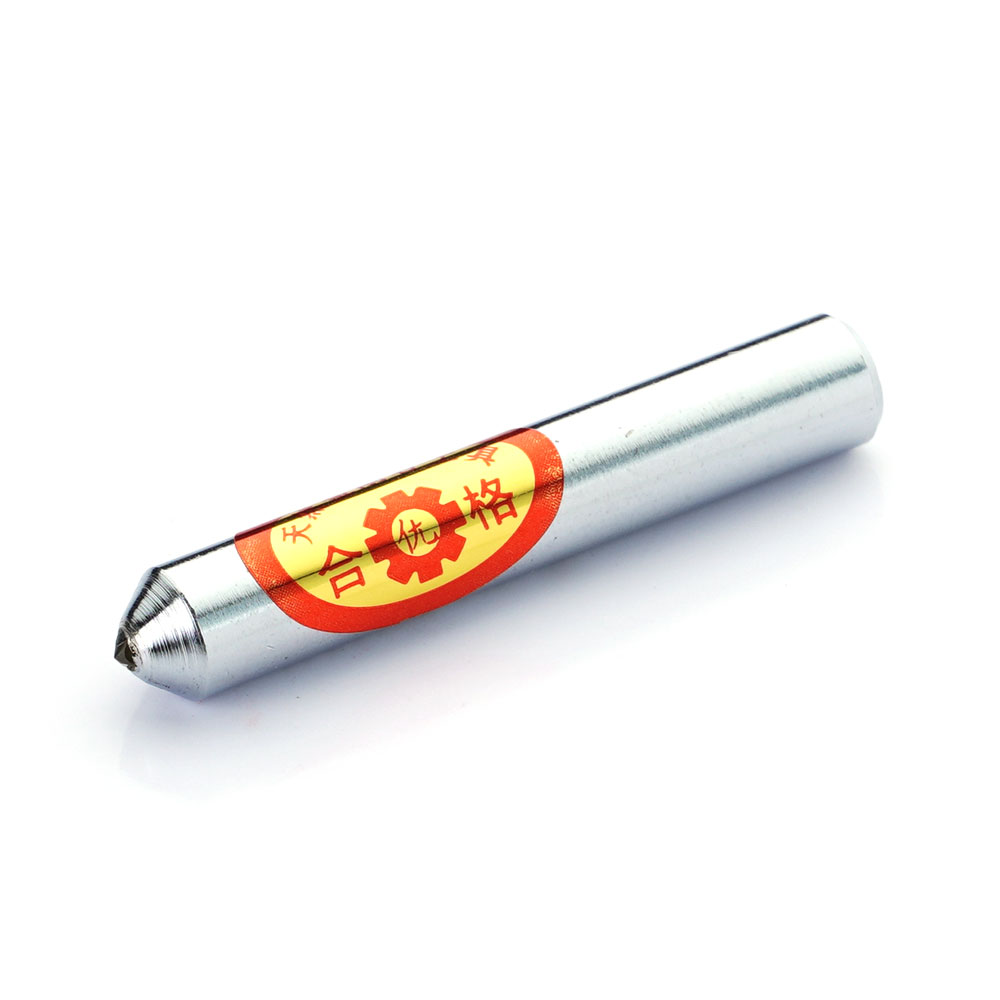

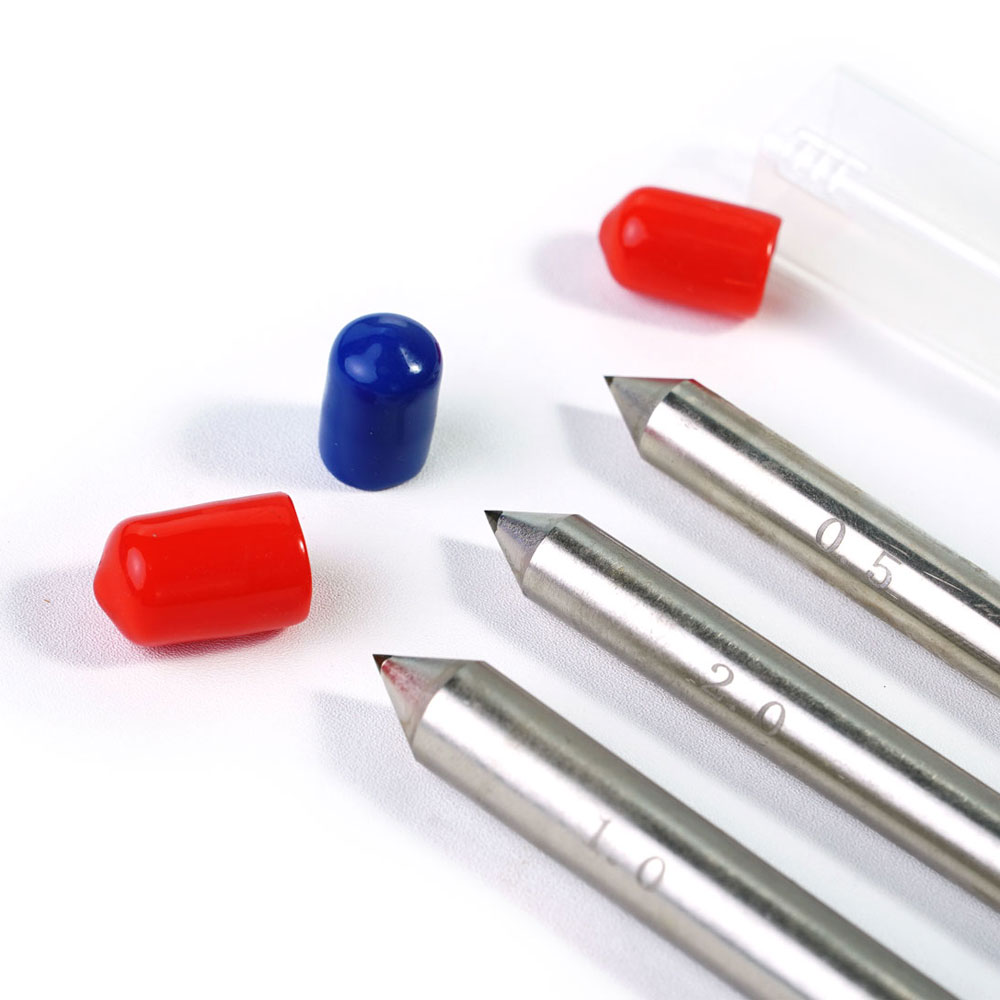

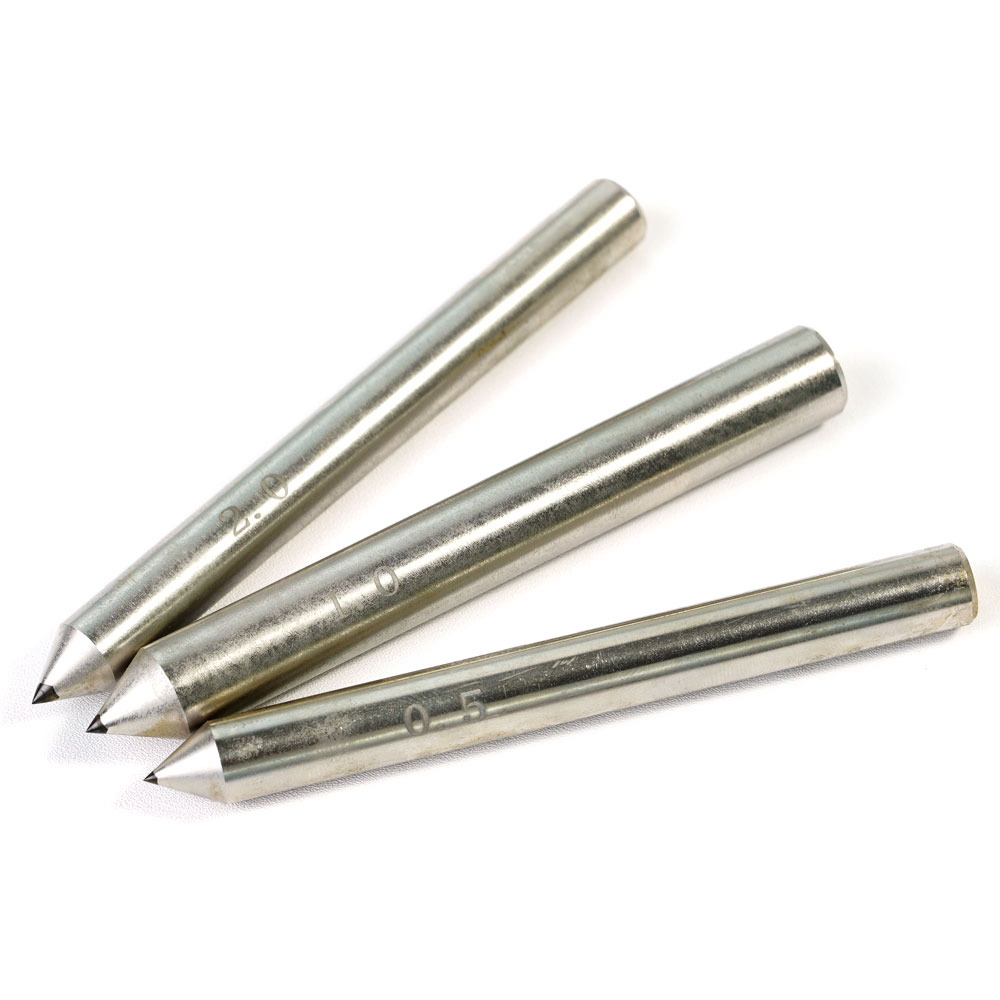

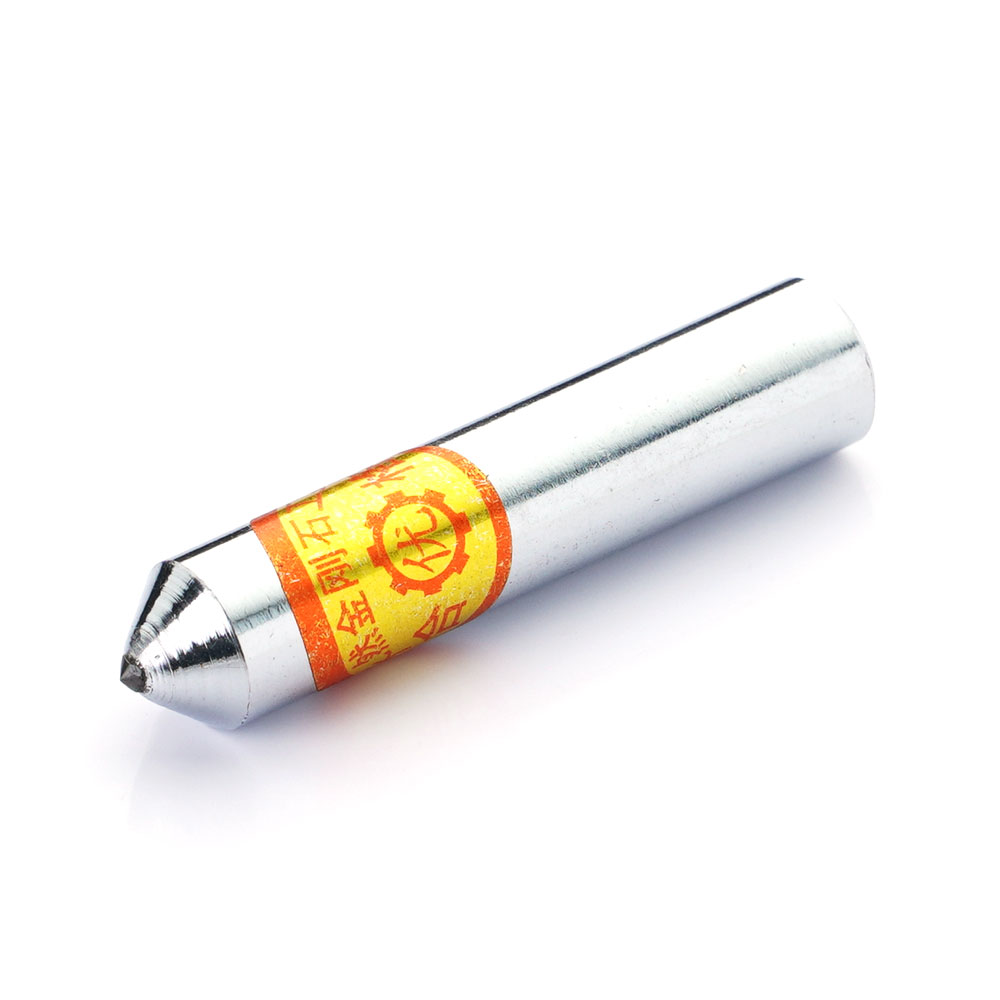

Single Point Diamond Dresser Brief Introduction
Single Point Diamond Dresser is made with natural diamond and synthetic materials like CVD, PCD and MCD. in steel shanks of various shapes for straight or form dressing. For truing and dressing of conventional abrasive grinding wheels. They are used for improving abrasive grinder performance by helping round the wheel and clean, shape or open the wheel face.
Usage of Single Point Diamond Dresser
2. Thinning and dressing of traditional forming wheels
3. Correction of special arcs, angles, and irregular shapes

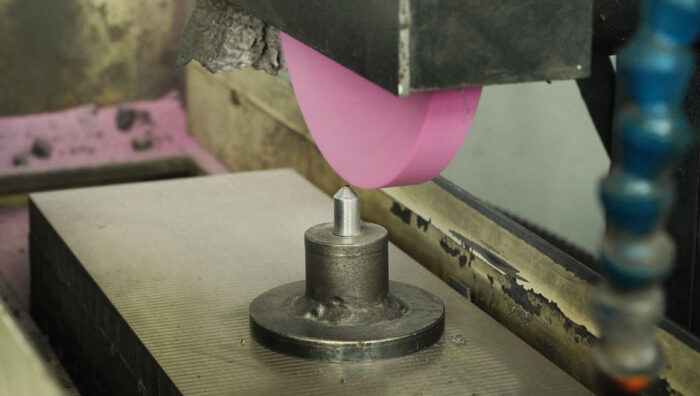

4. When the grinding wheel is stuffed, the sharpening action when the sharpness drops is generally traditional silicon carbide, and the alumina grinding wheel is eccentric during grinding. When the uneven surface is polished, it needs to be trimmed with a diamond correction knife to make it level. Restore grinding performance.
The features for our Single Point Diamond Dresser:
- Higher Output diamond dresser
 2. Different size dresser available
 3. Diamond sizes from 0.2ct ~2ct are available
Advantages of our Single Point Diamond Dresser Tools

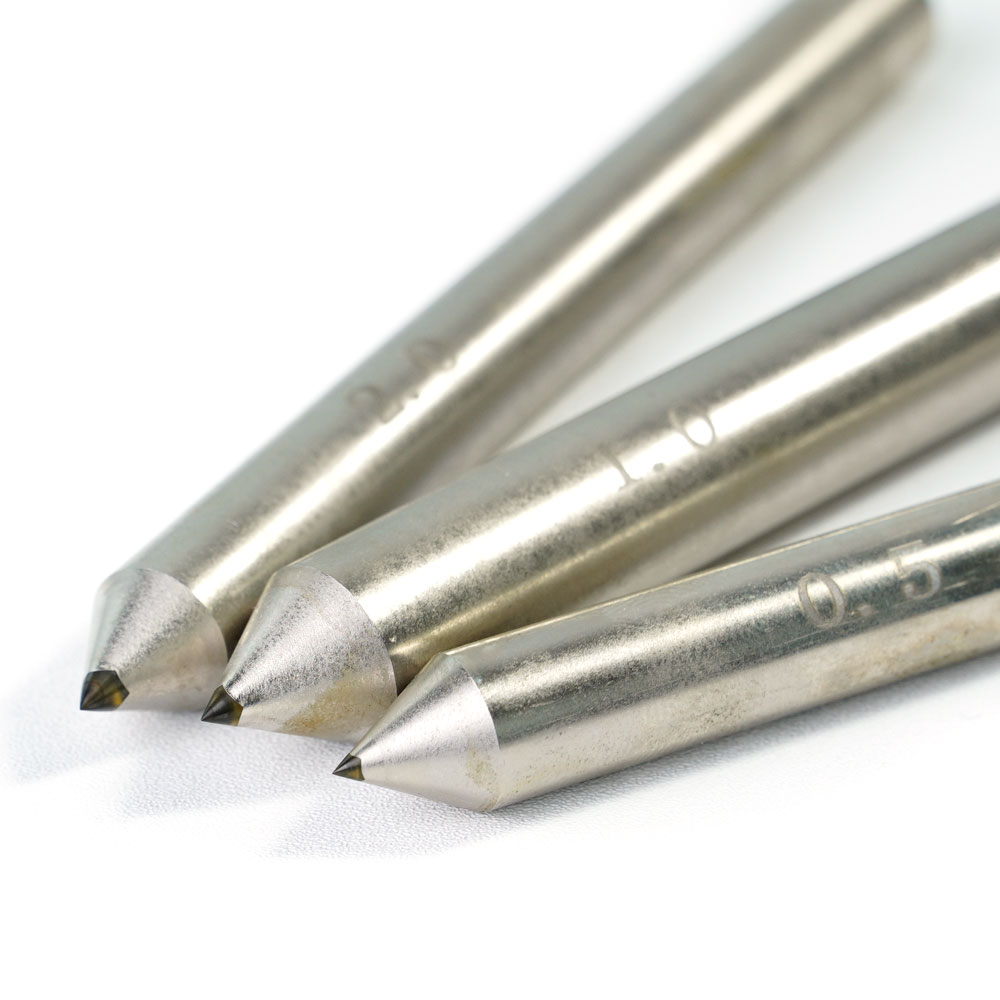

- Supersize Pure Natural Diamond
Featured South Africa premium diamonds, single-particle ensure precision and finish of machined parts
2. Stainless Steel Shank
The shank is made of high-quality stainless steel which is more steady and durable.
3. New Welding Technology
Using a vacuum low-temperature welding process, the diamond is welded firmly and particles will not fall off.
4. Long Service Life
Diamond is bonded in cemented carbide matrix with high hardness, they have a long service life, short dressing time not easy to wear off.
The product angle precision grinding for tool grinder, grinding machine inside the arc, outside the arc grinders and other precision molded wheel trim
- For normal abrasive wheels and abrasive wheels for Bearing
- For the processing of Input shaft / Output shaft
- For procession of Crankshaft and Gear
