Diamond Pencil Edge Grinding Wheel

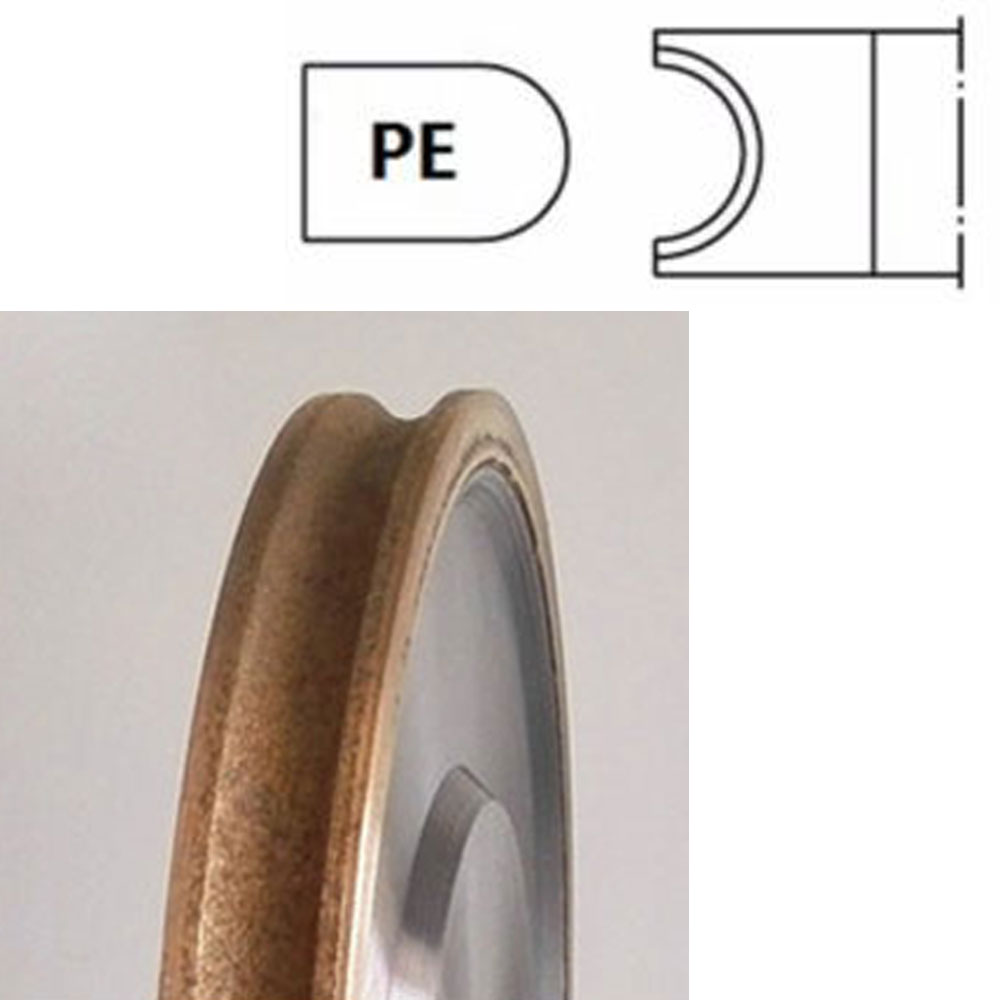

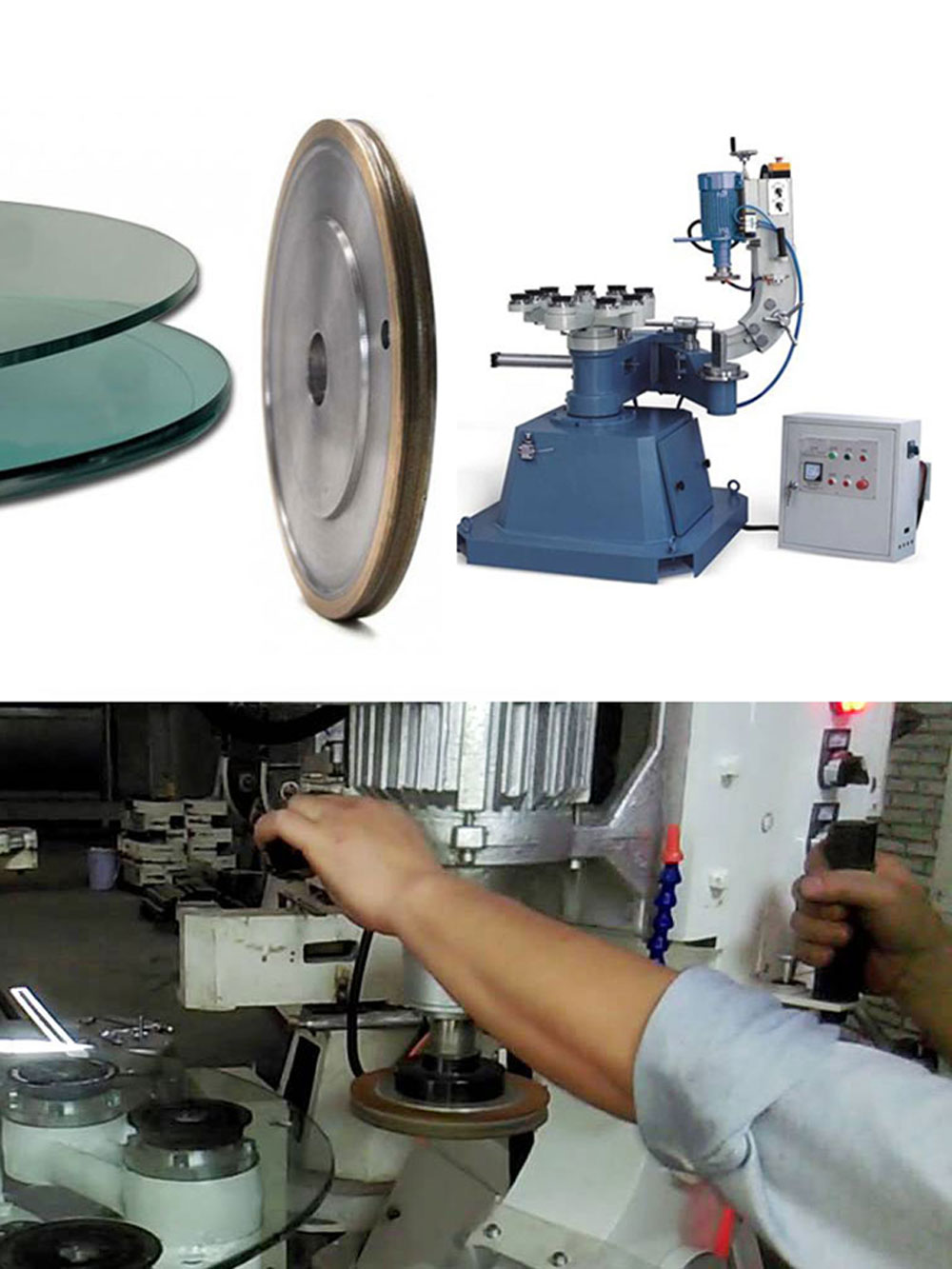

Diamond pencil edge grinding wheel takes synthetic diamond as abrasive grain, with 45# steel as matrix, which with a round concave edge for glass edge grinding. Suit for shape edging machine.

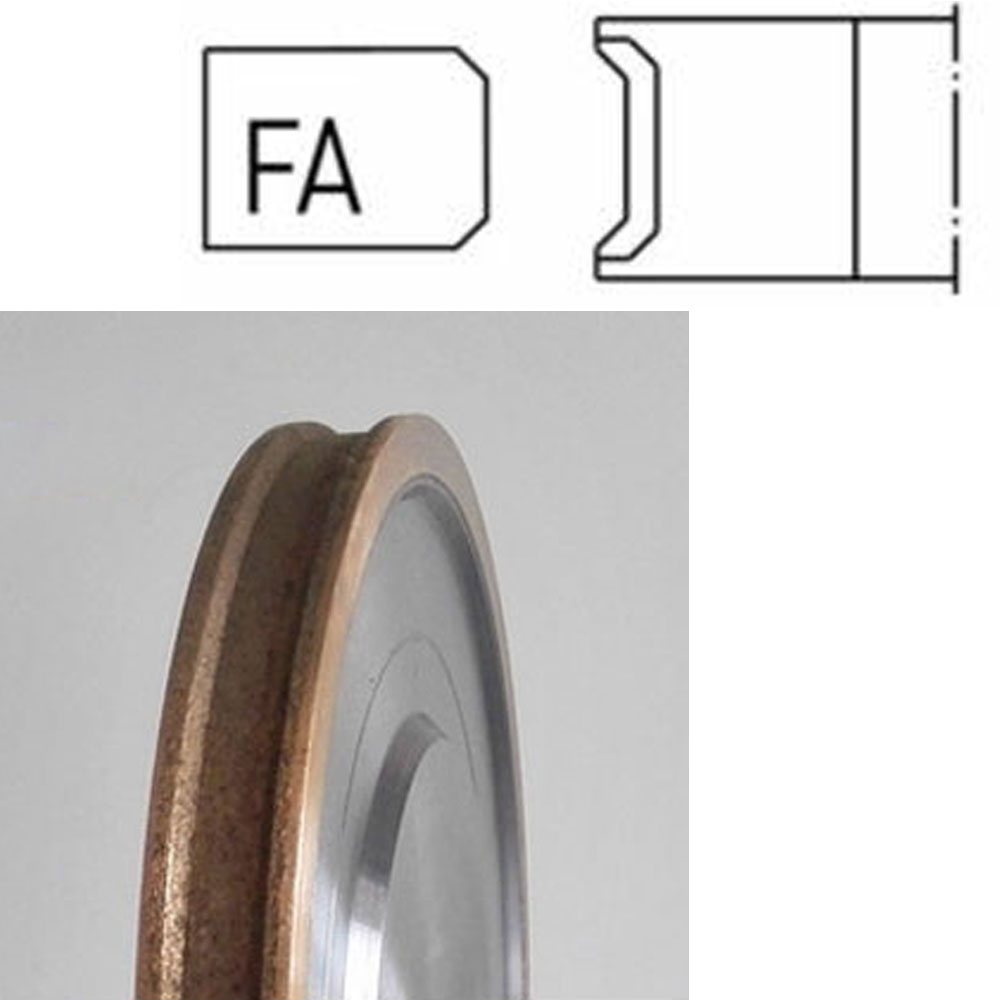

Another similar type is with a straight edge which is close to the diamond pencil edge grinding wheel is also very popular, standard diameter 4inch (100mm), 6inch (150mm) and bore 22mm is the most popular type.
Other types of edge are also available for customizing.
Specification:
| Item Name | Size | Grit |
| Diamond Pencil Edge Grinding Wheel | 150×22/25 3-4mm | 120# 150# 180# |
| 150×22/25 5-6mm | 120# 150# 180# | |
| 150×22/25 8mm | 120# 150# 180# | |
| 150×22/25 10mm | 120# 150# 180# | |
| 150×22/25 12mm | 120# 150# 180# | |
| 150×22/25 15mm | 120# 150# 180# | |
| 175×22/25 3-4mm | 120# 150# 180# | |
| 175×22/25 5-6mm | 120# 150# 180# | |
| 200×22/25 3-4mm | 120# 150# 180# |
Technology:
Taking high-quality steel as the matrix, being formed through intermediate frequency hot pressing sintering.
Features:
- Working in cooling water, high precision, sharp grinding, low noise, no tremor, no broken edge, high wear-resistance, high efficiency, long service life.
- Applicable for fast grinding, rough deburring and smooth shaping and finishing of stones, masonry materials.
- Characterized by high working efficiency and using easily.
- It attaches to handheld grinders and floor polishing machines.
