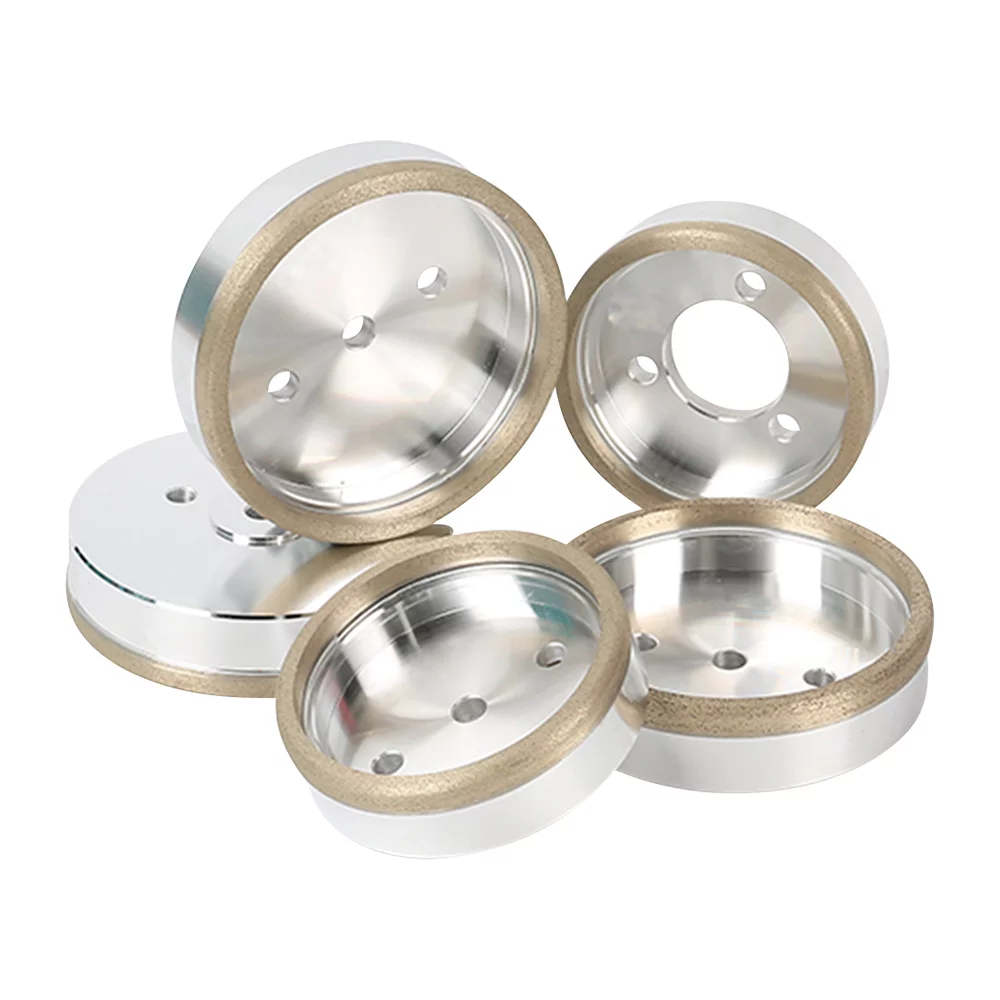

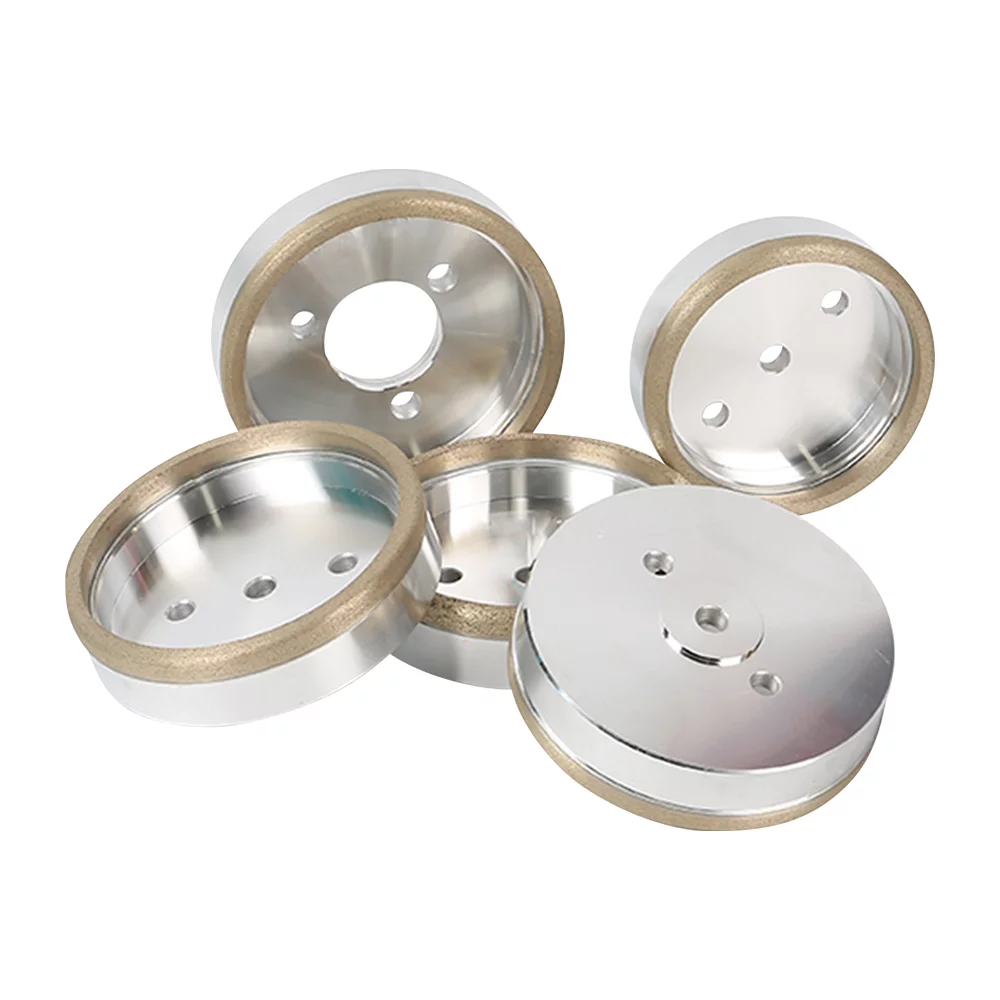

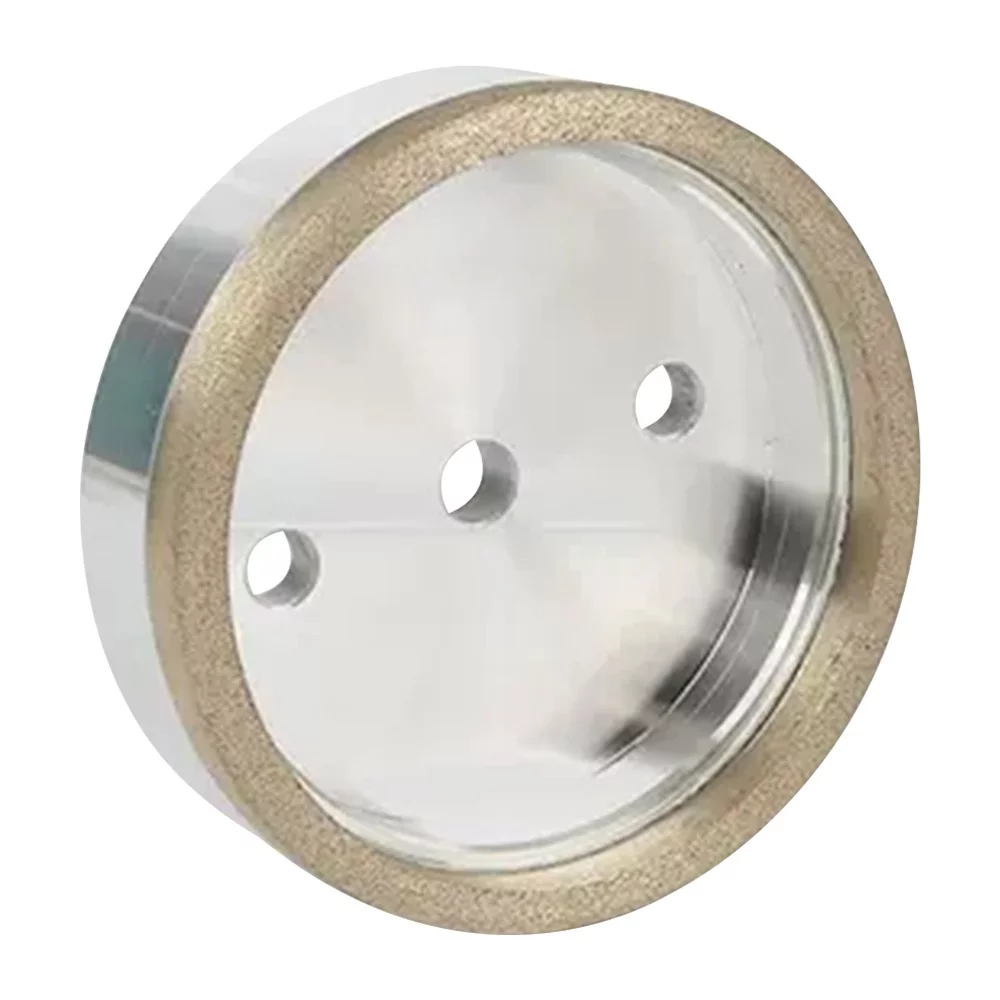

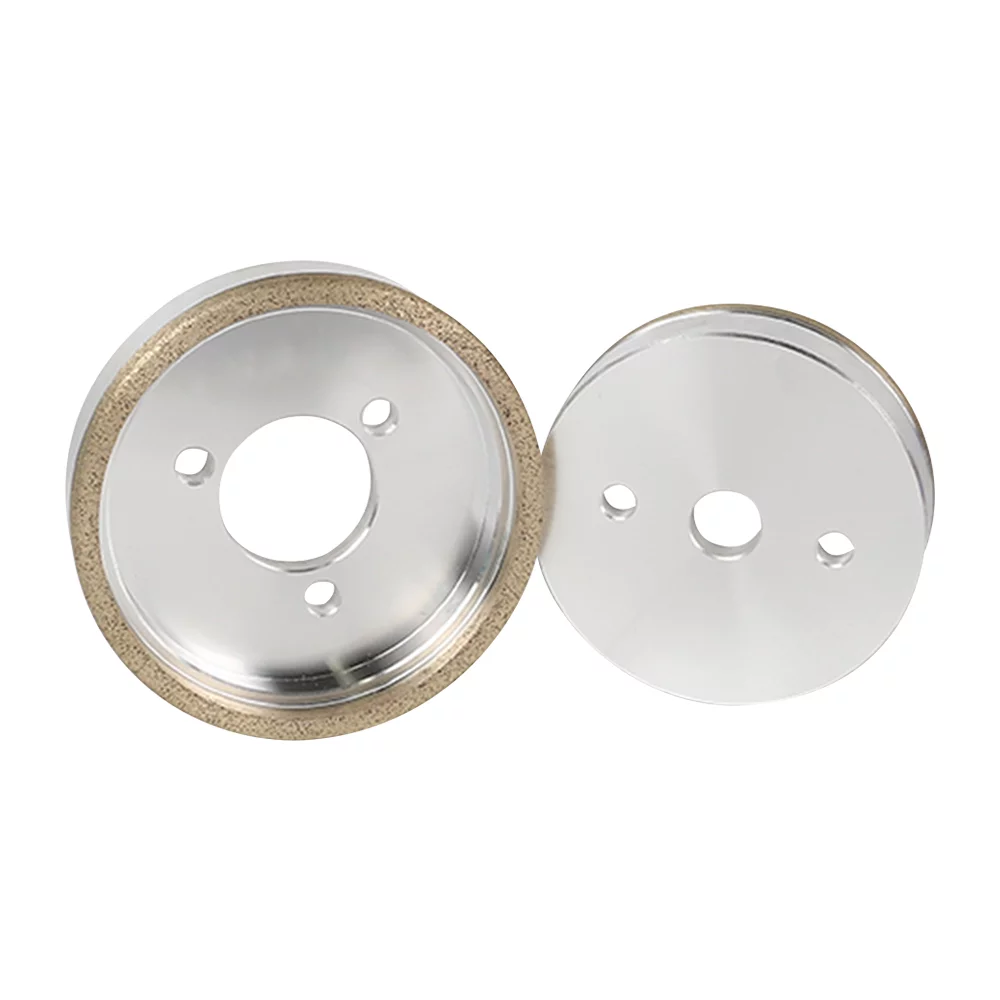

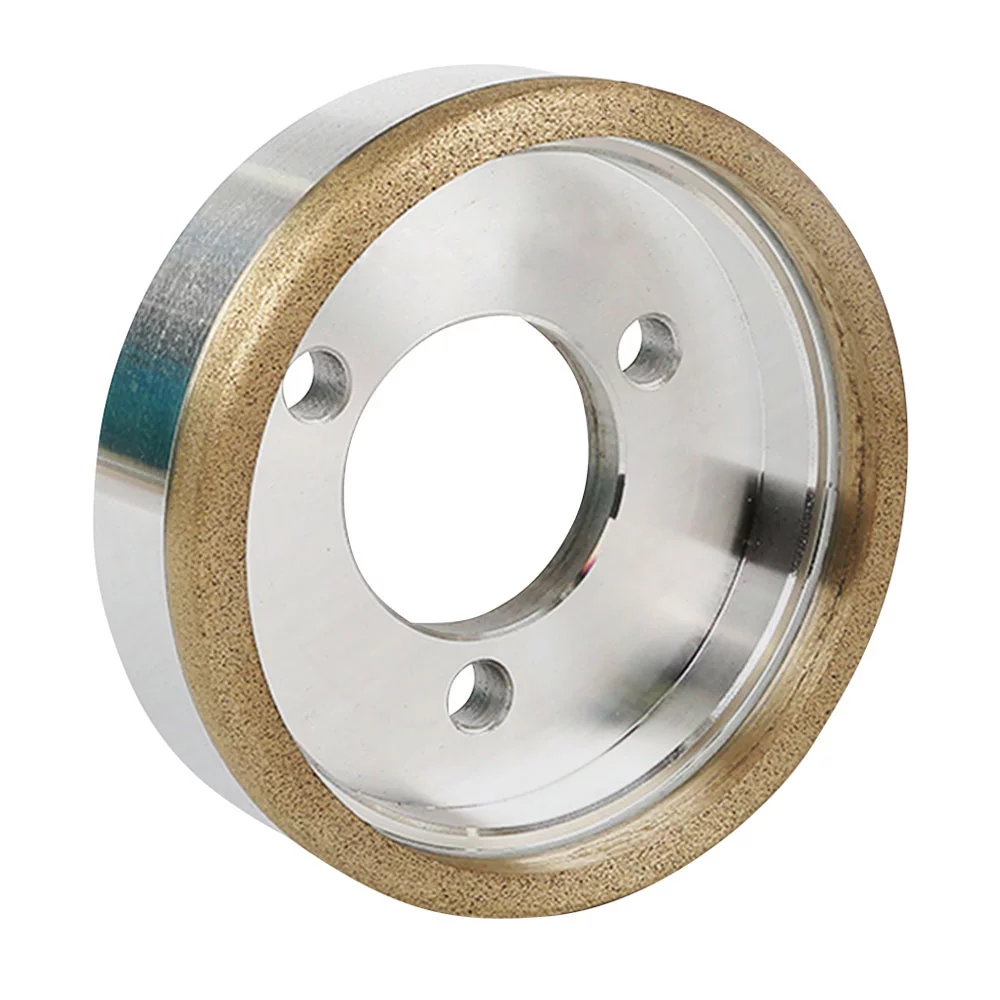

Continuous Rim Diamond Glass Edging Wheel
Short Description:
Continuous rim diamond glass edging wheel is a super abrasive tool suitable for all kinds of glass materials in various glass industries such as furniture glass, automotive glass, photovoltaic glass, building glass, and a lot more. This grinding tool is composed of a diamond powder mixed with metal bonds through the sintering process. This tool is mainly practiced for rough grinding, fine grinding, and chamfering on glass materials using the straight-line edging machine.
Features of Continuous Rim Diamond Glass Edging Wheel
- High-Quality Diamond. This glass edging tool is made of high-quality diamond powder raw materials which are being sintered at a high temperature and high pressure. This is to ensure sharpness and wear resistance on the tool’s structure.

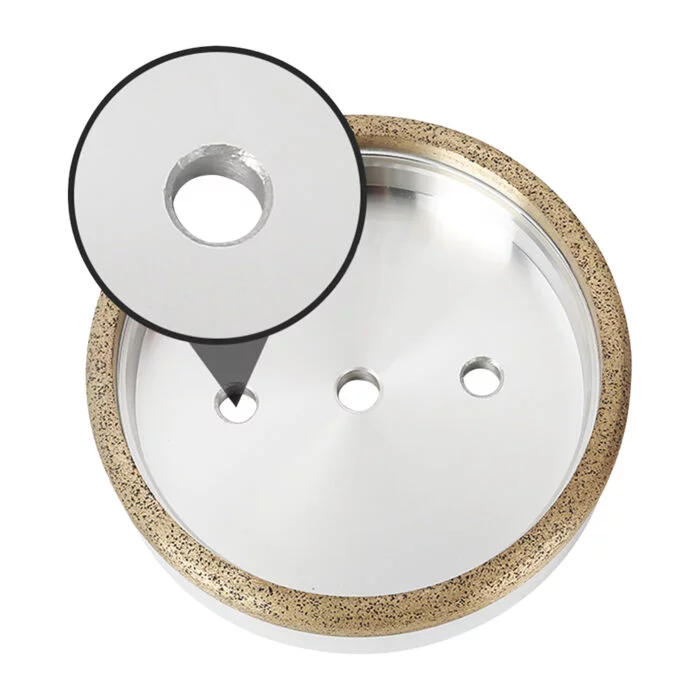

- Accurate Dimensions and Efficient Performance. This edging tool has a smooth and accurate inner hole which is an advantage for easy installation. The tool itself has good control and stable grinding performance which prevents collapsing and falling off of segments.
- Superior Tool Operation. This glass edging wheel has a high-speed tool operation suitable for all kinds of glass materials. What keeps it at superior performance is due to its all-aluminum matrix which is a light material and prevents rusting.
- Good Quality Result. Compared with other similar products, this tool features good sharpness and a fine grinding effect on any glass workpiece. This is very helpful for the fine processing and polishing process.
- Wear Resistance. The tool is worn-resistant and can withstand a rough grinding process or hard-to-rough production. With the diamond particles, this tool can provide longer service life.

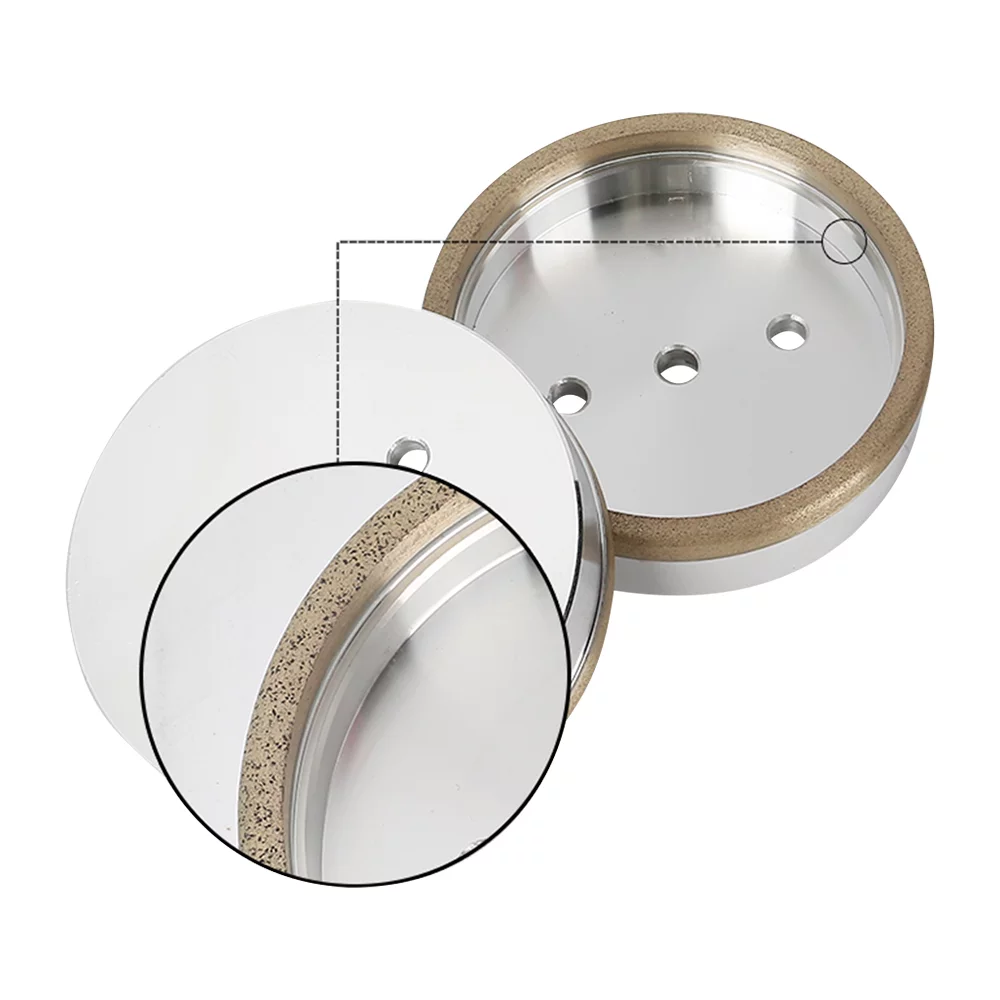

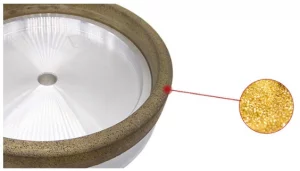

High-Quality DiamondÂ

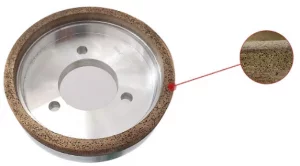

Aluminum Matrix
Detailed Description of Continuous Rim Diamond Glass Edging Wheel

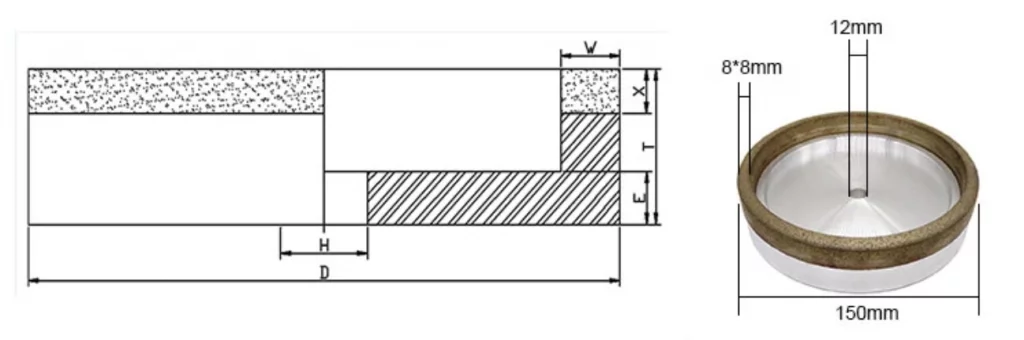

Product Specifications
Here’s a sample product specification available in the market. Special customization for sizes and shapes is also available depending on the client’s needs and requirements.
| Product Name | Type | Specification
(Diameter* Thickness*Hole) |
Diamond Section | Grit |
| Continuous Rim Diamond Glass Edging Wheel | Continuous Rim | 175*35*12/22/50 | 10*10 | 80# 100# 120# 150# 180# 240# |
| 175*35*12/22/50 | 8*10 | 80# 100# 120# 150# 180# 240# | ||
| 175*35*12/22/50 | 8*8 | 80# 100# 120# 150# 180# 240# | ||
| 150*35*12/22/50 | 10*10 | 80# 100# 120# 150# 180# 240# | ||
| 150*35*12/22/50 | 8*10 | 80# 100# 120# 150# 180# 240# | ||
| 150*35*12/22/50 | 8*8 | 80# 100# 120# 150# 180# 240# | ||
| 130*35*12/22/50 | 10*10 | 200#-240# | ||
| 130*35*12/22/50 | 8*8 | 200#-240# | ||
| 175*35*12/22/50 | 10*10 | 80# 100# 120# 150# 180# 240# |
If you prefer a 150 mm diameter, use the tool for 1st and 2nd position with a straight-line edger machine and double edger machine. If you prefer 130 mm, use it for the 3rd position with a beveling machine.
Applications:
This glass edging wheel is very popular in various glass industries and works fields due to its wide range of applications. With its high-quality features and structures, using this glass edging tool benefits a lot of areas during glass production. Here are some of its applications.
- Mainly used for glass productions on various glass materials such as soundproof glass, furniture glass, smart glass, automotive glass, architectural glass, home appliance glass, building glass, and many more.
- This tool is mostly used to grind glass edges that are straight or chamfered.
- This glass edging wheel is also applied for grinding bottom edge on the glass with special types of edging machines such as straight-line edging machine, glass double edge machine, lass round edge machine, and glass beveling machine.
Glass edging wheels like this are becoming popular in glass industries with their awesome features and applications. We hope this product content will guide you in choosing and purchasing the perfect glass edging wheel for your work.
