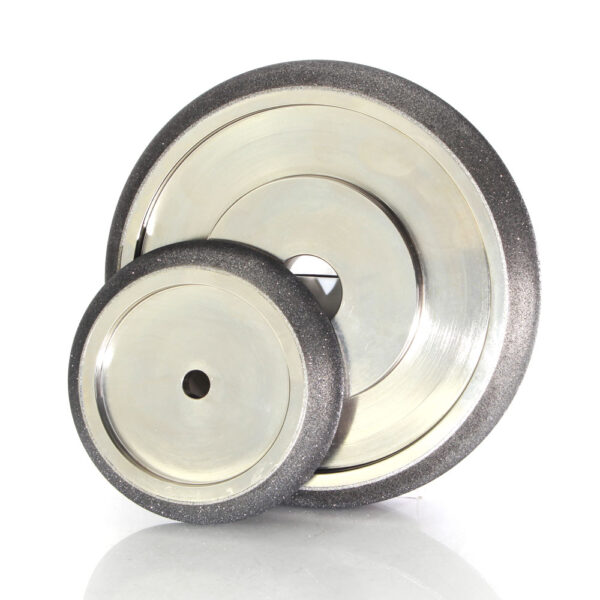

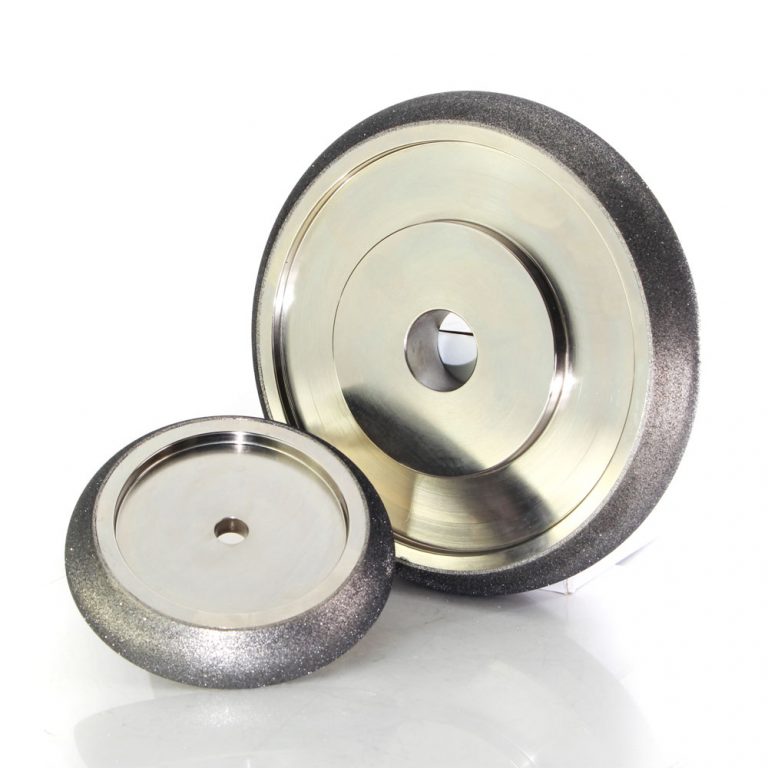

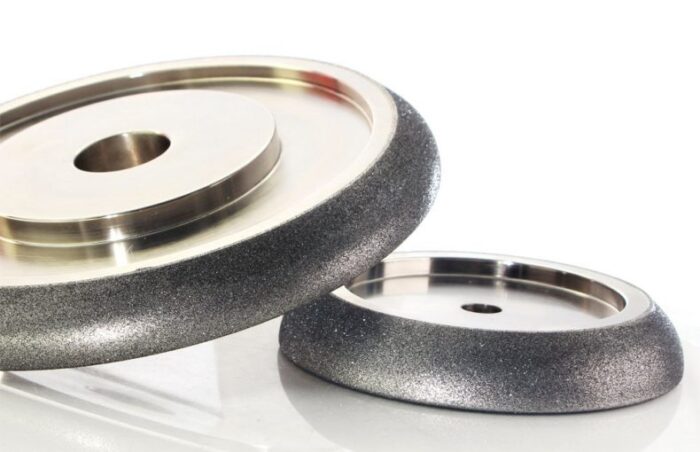

Electroplated CBN Band Saw Blade Sharpening Wheel

Band Saw Blade Sharpening Wheel

Abrasive Grain： CBN( Cubic boron nitride)

Bond： Electroplated

Body：45#Steel

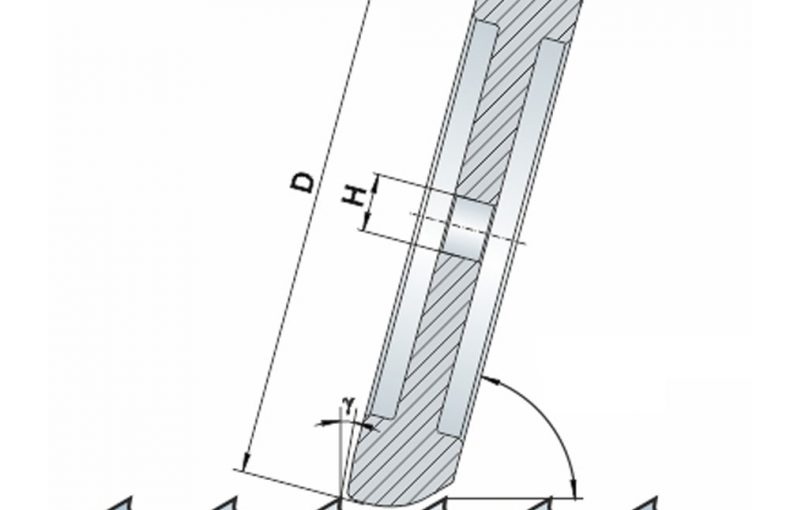

Diameter(D)：127mm(5 inch)/ 150mm(6 inch)/ 203mm(8 inch)

Thickness(T)：22.2mm

Center Hole(H)：12.7mm/20mm/25.4mm/32mm

Grit：B126 (120/140#)

Usage： The band saw blade sharpening wheel is an electroplated CBN grinding wheel which is used for band saw teeth sharpening. The electroplating process on the surface of the CBN plated steel substrate obtains precision, ensures high-quality tooth shapes, and makes the band saw chain blade sharper.

Conventional size of band saw blade sharpening wheel:

5 inch： D127mm-T22.2mm-H12.7mm

6 inch： D150mm-T22.2mm-H20mm

8 inch： D203mm-T22.2mm-H32mm

Conventional sizes are in stock all year round, and CBN grinding wheels can be customized according to the customer’s machine band saw blade.

Characteristics of different angle band saw wheels:

10/30: Commonly used universal grinding wheel profiles, softwood and hardwood band saws can be used;

9/29: Band saw or hardwood band saw for winter wood cutting;

13/29: Band saw or softwood band saw for summer wood cutting;

4/32: used to cut band saws for very hardwood;

7/34: For hardwood cutting band saw

Main Features:

1. Sharp: Fast sharpening the band saw blades with exact profile and excellent finishing
2. Long Life: Super long life than traditional abrasive wheels
3. Cost-effective: Unit costs are much lower.
4. 10/30, 9/29, 13/29, 4/32, 7/34 degrees and non-standard degrees are available
5. Oil cooling is recommended
6. Exact balancing each wheel
7. No loss of profile during grinding, no dressing required
8. Wheel cores can be recycled and replated, thus reducing waste
9. Suitable for Vollmer, Wood-Mizer, Westron, Loroch, Timber Wolf, Timbery, Norwood
